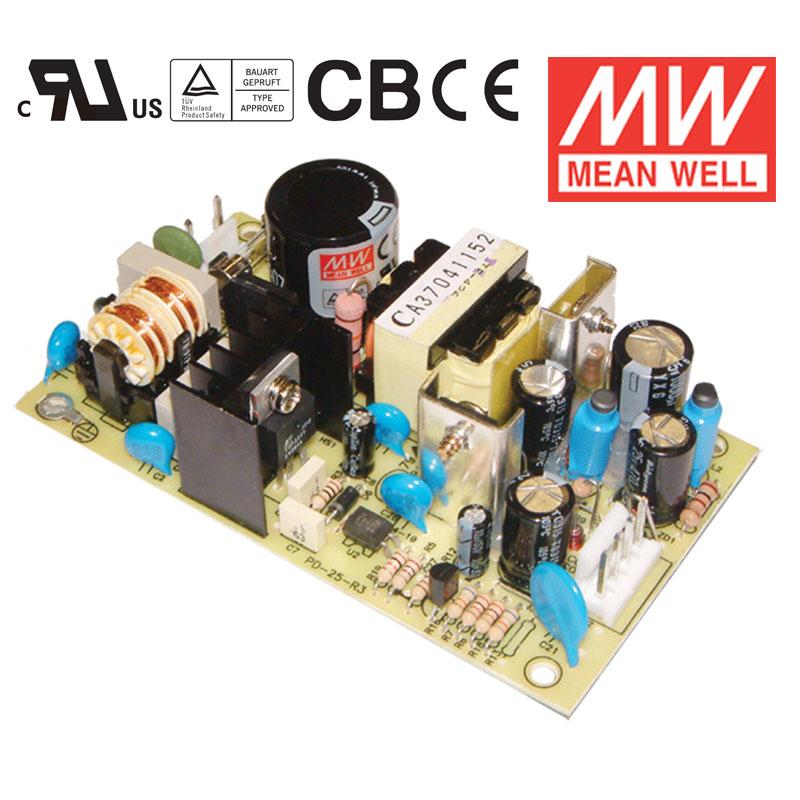

25W Dual Output Switching Power Supply PD-25 series
Features: * Universal AC input / Full range
* Low leakage current<0.5mA
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* 100% full load burn-in test
* Fixed switching frequency at 100KHz
* Low cost
* High reliability
* 2 years warranty Specifications:
MODEL
PD-25A
PD-25B
OUTPUT
CHANNEL
CH1
CH2
CH1
CH2
DC VOLTAGE
5V
12V
5V
24V
RATED CURRENT
2.1A
1.2A
1.2A
0.8A
CURRENT RANGE
0.2 ~ 2.5A
0.1 ~ 1.5A
0.2 ~ 2A
0.1 ~ 1A
RATED POWER
25W
25.2W
RIPPLE & NOISE
50mVp-p
150mVp-p
50mVp-p
200mVp-p
VOLTAGE TOLERANCE
2.0%
6.0%
2.0%
6.0%
LINE REGULATION
0.5%
2.0%
0.5%
2.0%
LOAD REGULATION
1.0%
4.0%
1.0%
4.0%
SETUP, RISE TIME
250ms, 50ms/230VAC 250ms, 30ms/115VAC at full load
HOLD UP TIME
100ms/230VAC 16ms/115VAC at full load
INPUT
VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY
47 ~ 63Hz
EFFICIENCY
71%
77%
AC CURRENT
0.65A/115VAC 0.4A/230VAC
INRUSH CURRENT
COLD START 32A
LEAKAGE CURRENT
<0.5mA / 240VAC
MODEL
PD-2505
PD-2512
PD-2515
OUTPUT
CHANNEL
CH1
CH2
CH1
CH2
CH1
CH2
DC VOLTAGE
5V
-5V
12V
-12V
15V
-15V
RATED CURRENT
2.5A
2.5A
1A
1A
0.8A
0.8A
CURRENT RANGE
0.1 ~ 3A
0.1 ~ 2.5A
0.1 ~ 1.2A
0.1 ~ 1.2A
0.1 ~ 1A
0.1 ~ 1A
RATED POWER
25W
24W
24W
RIPPLE & NOISE
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
50mVp-p
VOLTAGE TOLERANCE
6.0%
6.0%
4.0%
4.0%
4.0%
4.0%
LINE REGULATION
1.0%
1.0%
0.5%
0.5%
0.5%
0.5%
LOAD REGULATION
4.0%
4.0%
3.0%
3.0%
3.0%
3.0%
SETUP, RISE TIME
250ms, 50ms/230VAC 250ms, 30ms/115VAC at full load
