PS-25

Product:
PS-25
Model Number:
Description:

Learn more about products detailed description, pricing and service, Please send mail to us!

sales@showlandpower.com

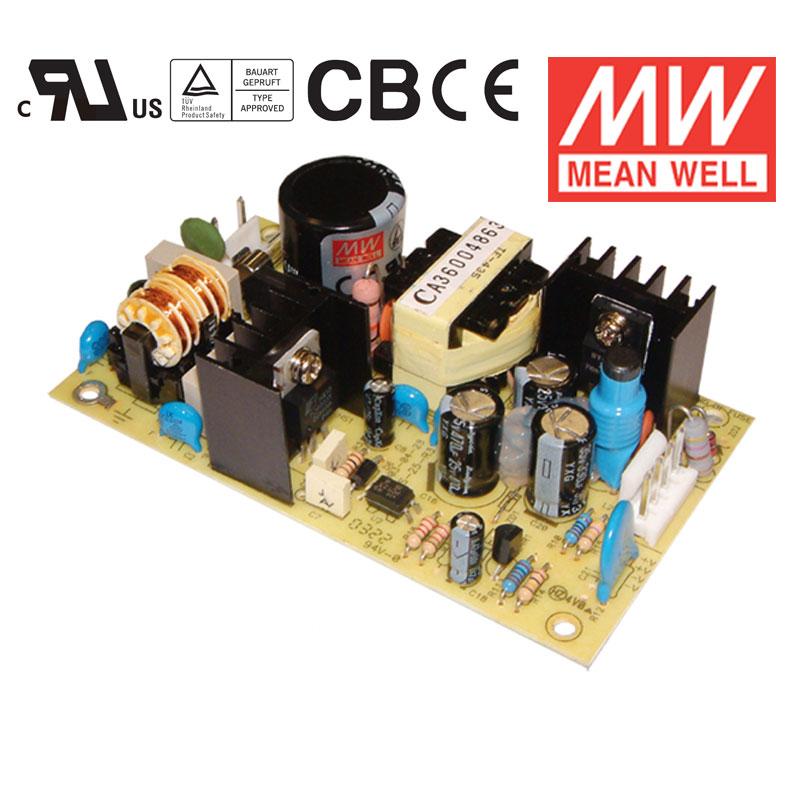

25W Single Output Switching Power Supply PS-25 series

Features:
* Universal AC input / Full range
* Low leakage current <0.5mA
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* 100% full load burn-in test
* Fixed switching frequency at 100KHz
* Low cost
* High reliability
* 2 years warranty

Specifications:

MODEL			PS-25-3.3	PS-25-5	PS-25-7.5	PS-25-12
OUTPUT	DC VOLTAGE	3.3V		5V	7.5V	12V
	RATED CURRENT	5A		5A	3.3A	2.1A
	CURRENT RANGE	0 ~ 5A		0 ~ 5A	0 ~ 3.3A	0 ~ 2.1A
	RATED POWER	16.5W		25W	24.8W	25.2W
	RIPPLE & NOISE	80mVp-p		80mVp-p	80mVp-p	100mVp-p
	VOLTAGE TOLERANCE	3.0%		2.0%	2.0%	2.0%
	LINE REGULATION	0.5%		0.5%	0.5%	0.3%
	LOAD REGULATION	2.5%		2.0%	2.0%	1.0%
	SETUP, RISE TIME	200ms, 20ms/230VAC 200ms, 30ms/115VAC at full load
	HOLD UP TIME	100ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY	66%		74%	76%	78%
	AC CURRENT	0.6A/115VAC 0.4A/230VAC
	INRUSH CURRENT	COLD START 36A
	LEAKAGE CURRENT	<0.5mA / 240VAC

MODEL		PS-25-13.5	PS-25-15	PS-25-24	PS-25-27		PS-25-48
OUTPUT	DC VOLTAGE	13.5V	15V	24V	27V		48V
	RATED CURRENT	1.9A	1.7A	1A	0.9A		0.5A
	CURRENT RANGE	0 ~ 1.9A	0 ~ 1.7A	0 ~ 1A	0 ~ 0.9A		0 ~ 0.5A
	RATED POWER	25.7W	25.5W	24W	24.3W		24W
	RIPPLE & NOISE	100mVp-p	100mVp-p	240mVp-p	240mVp-p		350mVp-p
	VOLTAGE TOLERANCE	2.0%	2.0%	2.0%	2.0%		2.0%
	LINE REGULATION	0.3%	0.3%	0.2%	0.2%		0.2%
	LOAD REGULATION	1.0%	1.0%	0.5%	0.5%		0.5%
	SETUP, RISE TIME	200ms, 20ms/230VAC 200ms, 30ms/115VAC at full load
	HOLD UP TIME	100ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY	47 ~ 63Hz
	EFFICIENCY	78%	78%	79%		79% ,	79%
	AC CURRENT	0.6A/115VAC 0.4A/230VAC
	INRUSH CURRENT	COLD START 36A
	LEAKAGE CURRENT	<0.5mA / 240VAC
