SDR-120

Product:
SDR-120
Model Number:
Description:

Learn more about products detailed description, pricing and service, Please send mail to us!

sales@showlandpower.com

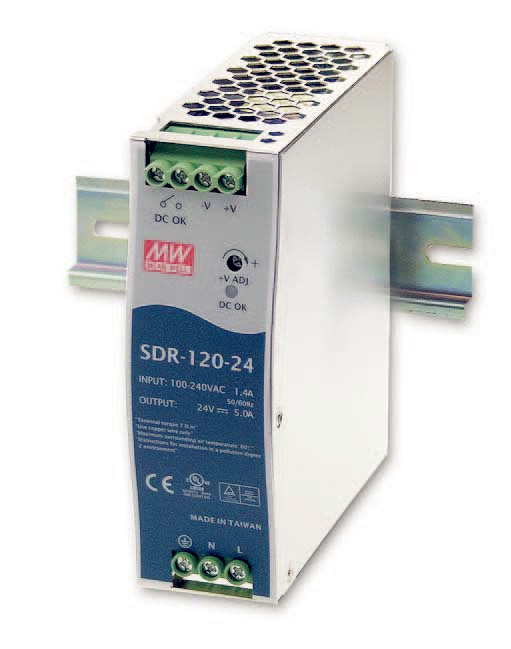

120W Single Output Industrial DIN RAIL with PFC Function SDR-120 series

Features:

* High efficiency 91% and low power dissipation

* 150% peak load capability

* Built-in active PFC function, PF>0.93

* Protections: Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* Can be installed on DIN rail TS-35/7.5 .or 15

* UL 508 (industrial control equipment) approved

* EN61000-6-2(EN50082-2) industrial immunity level

* Built-in DC OK relay contact

* 100% full load burn-in test

* 3 years warranty

Specifications:

MODEL		SDR-120-12		SDR-120-24	SDR-120-48
OUTPUT	DC VOLTAGE	12V		24V	48V
	CURRENT RANGE	0 ~ 10A		0 ~ 5A	0 ~ 2.5A
	RATED CURRENT	10A		5A	2.5A
	RATED POWER	120W		120W	120W
	PEAK CURRENT	15A		7.5A	3.75A
	PEAK POWER Note.6	180W (3 sec.)
	RIPPLE & NOISE (max.)	100mVp-p		100mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	12 ~ 14V		24 ~ 28V	48 ~ 55V
	VOLTAGE TOLERANCE	1.0%		1.0%	1.0%
	LINE REGULATION	0.5%
	LOAD REGULATION	1.0%
	SETUP, RISE TIME	1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
	HOLD UP TIME (Typ.)	20ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	88 ~ 264VAC 124 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR	0.93/230VAC 0.96/115VAC at full load
	EFFICIENCY	89%	91%			90.5%
	AC CURRENT	1.4A/115VAC 0.7A/230VAC
	INRUSH CURRENT	35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage
		>150% rated power, constant current limiting with auto-recovery within 3 seconds and shut down o/p voltage after 3 seconds
	OVER VOLTAGE	14 ~ 17V	29 ~ 33V			56 ~ 65V
		Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMP	95 5 (TSW : detect on heatsink of power switch)
		Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-25 ~ +70oC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85oC , 10 ~ 95% RH
	TEMP. COEFFICIENT	0.03%/oC (0 ~ 50oC )
	VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &EMC	SAFETY STANDARDS	UL508, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC O/, P-DC OK:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25 / 70% RH
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, SEMI F47, GL approved
OTHERS	MTBF	289.9Khrs min. MIL-HDBK-217F (25 )
	DIMENSION	40125.2113.5mm (WHD)
	PACKING	0.67Kg; 20pcs/14.4Kg/1.16CUFT
NOTE	1. All parameters NOT specially mentioned are measured at rated load and 25oC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended. 6. 3 seconds max., please refer to peak loading curves. 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
