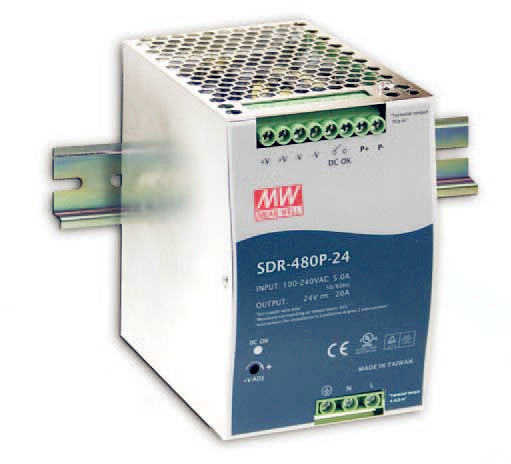

SDR-480P
480W Single Output Industrial DIN RAIL with PFC and Parallel Function SDR-480P series
Features: * Current sharing up to 3840W(7+1)
* High efficiency 94% and low power dissipation
* 150% peak load capability
* Built-in active PFC function, PF>0.94
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* Built-in constant current limiting circuit
* Can be installed on DIN rail TS-35/7.5 .or 15
* UL 508(industrial control equipment)approved
* EN61000-6-2(EN50082-2) industrial immunity level
* Built-in DC OK relay contact
* 100% full load burn-in test
* 150% peak load capability
* 3 years warranty Specifications: MODEL SDR-480P-24 SDR-480P-48 OUTPUT DC VOLTAGE 24V 48V PEAK POWER 720W (3sec.) CURRENT RANGE 0 ~20A 0 ~ 10A RATED CURRENT 20A 10A RATED POWER 480W 480W PEAK CURRENT 30A 15A RIPPLE & NOISE (max.) 100mVp-p 120mVp-p VOLTAGE ADJ. RANGE 24 ~ 28V 48 ~ 55V VOLTAGE TOLERANCE 1.2% 1.0% LINE REGULATION 0.5% LOAD REGULATION 1.0% SETUP RISE TIME 1500ms, 150ms/230VAC 3000ms, 150ms/115VAC at full load HOLED UP TIME (TYP) 14ms/230VAC at full load INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR(TYP) 0.94/230VAC 0.99/115VAC at full load EFFICIENCY (Typ.) NOTE.8 94% 94% AC CURRENT (Typ.) 5A/115VAC 2.5A/230VAC INRUSH CURRENT (Typ.) 40A/115VAC 80A/230VAC LEAKAGE CURRENT <0.6mA / 240VAC FUNCTION DC OK REALY CONTACT RATING 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load CURRENT SHARING Please see the Function Manual ENVIRONMENT WORKING TEMP,NOTE.5 -25 ~ +70 (Refer to output load derating curve) STORAGE TEMP,HUMIDITY -40 ~ +85 , 10 ~ 95% RH WORKINGTEMP. NOTE.5 -25 ~ +70 (Refer to output load derating curve) OTHERS MTBF 112.9Khrs min. MIL-HDBK-217F (25 ) DIMENSION 85.5*125.2*128.5mm (W*H*D) PACKING 1.6Kg; 8pcs/13.8Kg/0.9CUFT
