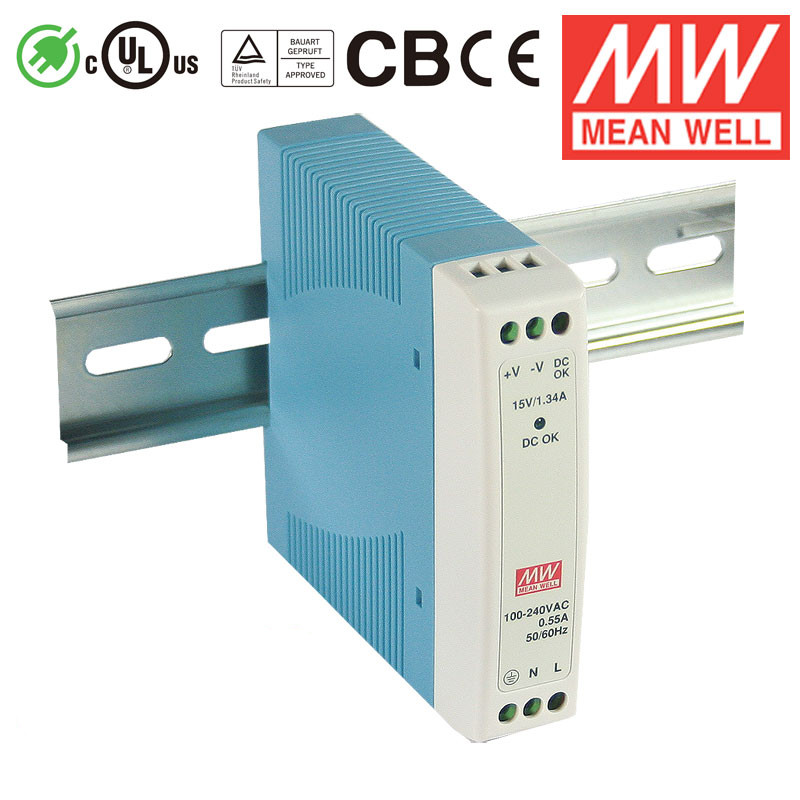

MODEL
|
MDR-10-5
|
MDR-10-12
|
MDR-10-15
|
MDR-10-24
|
|
OUTPUT
|
DC VOLTAGE
|
5V
|
12V
|
15V
|
24V
|
|
CURRENT RANGE
|
0 ~ 2A
|
0 ~ 0.84A
|
0 ~ 0.67A
|
0 ~ 0.42A
|
|
RATED CURRENT
|
2A
|
0.84A
|
0.67A
|
0.42A
|
|
RATED POWER
|
10W
|
10W
|
10W
|
10W
|
|
RIPPLE & NOISE (max.) Note.2
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
150mVp-p
|
|
VOLTAGE ADJ. RANGE
|
4.75 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5 ~ 16.5V
|
21.6 ~ 26.4V
|
|
VOLTAGE TOLERANCE
NOTE.3
|
5.0%
|
3.0%
|
3.0%
|
2.0%
|
|
LINE REGULATION
|
1.0%
|
|
LOAD REGULATION
|
5.0%
|
3.0%
|
3.0%
|
2.0%
|
|
SETUP, RISE TIME NOTE.5
|
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
|
|
HOLD UP TIME (Typ.)
|
120ms/230VAC 25ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
77%
|
81%
|
81%
|
84%
|
|
AC CURRENT (Typ.)
|
0.33A/115VAC 0.21A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 35A/115VAC 70A/230VAC
|
|
LEAKAGE CURRENT
|
<1mA / 240VAC
|
|
PROTECTION
|
OVER LOAD
|
Above 105% rated output power
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
5.75 ~ 6.75V
|
13.8 ~ 16.2V
|
17.25 ~ 20.25V
|
27.6 ~ 32.4V
|
|
Protection type : Shut down o/p voltage, re-power on to recover
|
|
DC OK ACTIVE SIGNAL(MAX.)
|
3.75 ~ 6V / 50mA
|
9 ~ 13.5V / 40mA
|
11.5 ~ 16.5V / 40mA
|
18 ~ 27V / 20mA
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-20 ~ +70 (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-40 ~ +85 , 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/ (0 ~ 50 )
|
|
VIBRATION
|
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
|
|
SAFETY &EMC
|
SAFETY STANDARDS
|
UL508, TUV EN60950-1 approved, NEC class 2 / LPS compliant
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55011,EN55022 (CISPR22), EN61204-3 Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A
|
|
OTHERS
|
MTBF
|
584K hrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
22.5*90*100mm (W*H*D)
|
|
PACKING
|
0.17Kg; 72pcs/13.2Kg/0.91CUFT
|
|
NOTE
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
|
