WDR-120

Product:
WDR-120
Model Number:
Description:

Learn more about products detailed description, pricing and service, Please send mail to us!

sales@showlandpower.com

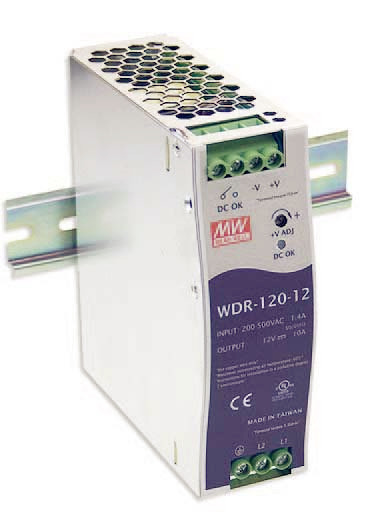

120W Single Output Industrial DIN RAIL Power Supply WDR-120 series

Features:

* Wide input range 180 ~ 550VAC

* Protections: Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* Built-in constant current limiting circuit

* Can be installed on DIN rail TS-35/7.5 .or 15

* UL508(industrial control equipment)approved

* EN61000-6-2(EN50082-2) industrial immunity level

* 100% full load burn-in test

* Built-in DC OK relay contact

* 3 years warranty

Specifications:

MODEL		WDR-120-12	WDR-120-24	WDR-120-48
OUTPUT	DC VOLTAGE	12V	24V	48V
	CURRENT RANGE	0 ~ 10A	0 ~ 5A	0 ~2.5A
	RATED CURRENT	10A	5A	2.5A
	RATED POWER	120W	120W	120W
	RIPPLE & NOISE	120mVp-p	120mVp-p	150mVp-p
	VOLTAGE ADJ.RANGE	12 ~ 15V	24 ~ 29V	48 ~ 58V
	VOLTAGE TOLERANCE	1.5%	1.0%	1.0%
	LINE REGULATION	5.0%
	LOAD REGULATION	5.0%
	SETUP RISE TIME	2000ms, 70ms, 50ms/400VAC 2000ms, 70ms, 10ms/230VAC at full load
INPUT	VOLTAGE RANGE	180 ~ 550VAC 254 ~ 780VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY	89.5% / 400V	91% / 400V	92% / 400V
	AC CURRENT	0.55A/400VAC 1.2A/230VAC
	INRUSH CURRENT	COLD START 50A
	LEAKAGE CURRENT	<3.5mA / 530VAC
OTHERS	MTBF	268Khrs min. MIL-HDBK-217F (25 )
	DIMENSION	40125.2113.5mm (WHD)
	PACKING	0.65Kg; 20pcs/14Kg/1.16CUFT
