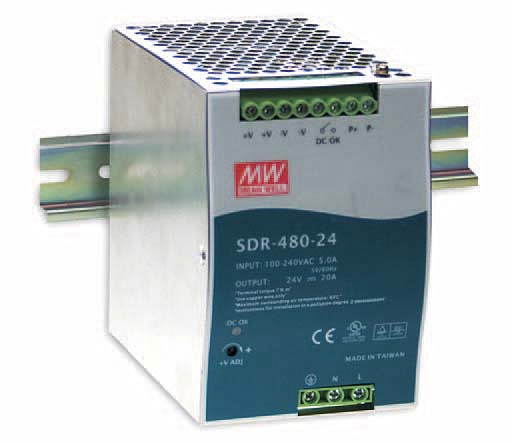

SDR-480
480W Single Output Industrial DIN RAIL with PFC Function SDR-480 series
Features: * High efficiency 94% and low power dissipation
* 150% peak load capability
* Built-in active PFC function, PF>0.94
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* Built-in constant current limiting circuit
* Can be installed on DIN rail TS-35/7.5 .or 15
* UL 508(industrial control equipment)approved
* EN61000-6-2(EN50082-2) industrial immunity level
* Built-in DC OK relay contact
* 100% full load burn-in test
* 150% peak load capability
* 3 years warranty Specifications:
MODEL SDR-480-24 SDR-480-48 OUTPUT DC VOLTAGE 24V 48V PEAK POWER 720W (3sec.) CURRENT RANGE 0 ~20A 0 ~ 10A RATED CURRENT 20A 10A RATED POWER 480W 480W PEAK CURRENT 30A 15A RIPPLE & NOISE 100mVp-p 120mVp-p VOLTAGE ADJ. RANGE 24 ~ 28V 48 ~ 55V VOLTAGE TOLERANCE 1.2% 1.0% LINE REGULATION 0.5% LOAD REGULATION 1.0% SETUP RISE TIME 1500ms, 150ms/230VAC 3000ms, 150ms/115VAC at full load HOLED UP TIME 14ms/230VAC at full load INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR 0.94/230VAC 0.99/115VAC at full load EFFICIENCY 94% 94% AC CURRENT 5A/115VAC 2.5A/230VAC INRUSH CURRENT 40A/115VAC 80A/230VAC LEAKAGE CURRENT <0.8mA / 240VAC OTHERS MTBF 112.9Khrs min. MIL-HDBK-217F (25 ) DIMENSION 85.5*125.2*128.5mm (W*H*D) PACKING 1.6Kg; 8pcs/13.8Kg/0.9CUFT
