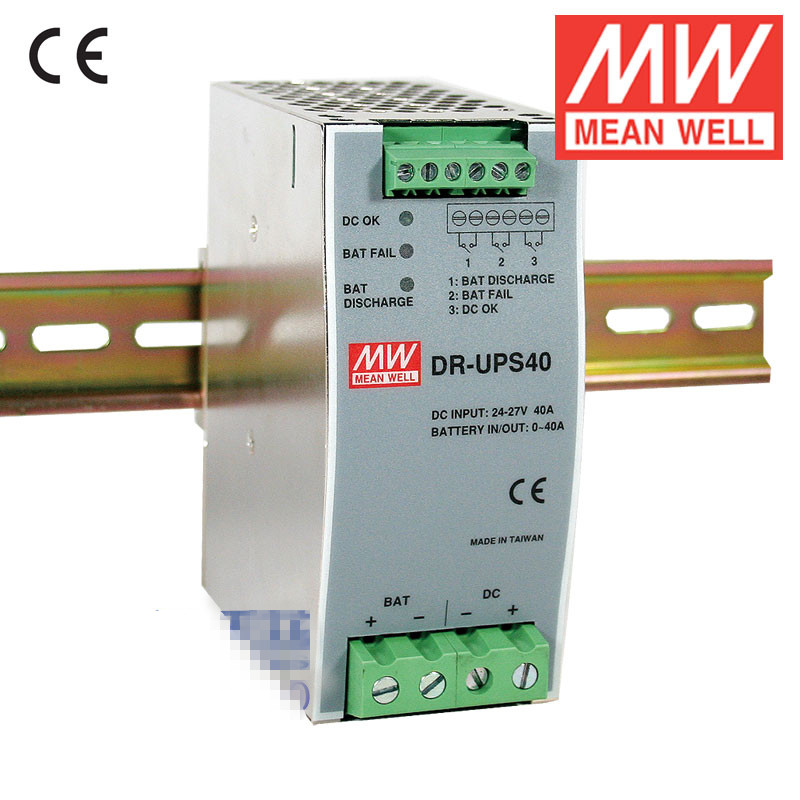

40A DC UPS Module DR-UPS40
Features:
* Battery controller for DIN Rail UPS system
* Parallel connection to DC BUS Suitable for 24V system up to 40A Installed on DIN Rail TS35 / 7.5 .or 15
* Built-in battery test function
* Battery polarity protection
* Relay contact signal output and LED indicator for DC BUS OK, Battery Fail, and Battery Discharge
* Cooling by free air convection
* 3 years warranty
Specifications:
|
MODEL
|
DR-UPS40
|
|
OUTPUT
|
DC INPUT / DC VOLTAGE
|
24 ~ 29V
|
|
RATED CURRENT
|
40A
|
|
BATTERY INPUT
OUTPUT
|
VOLTAGE RANGE (Typ.)
|
21 ~ 29V
|
|
CURRENT RANGE
|
0 ~ 40A
|
|
CHARGE CURRENT (Typ.)
|
2A
|
|
EXTERNAL BATTERY (Typ.)
|
4 / 7 / 12AH / 24V
|
|
FUNCTION
|
RELAY CONTACT RATING
|
30VDC, 1A
|
|
DC BUS OK
|
Relay contact : Short when DC voltage between 21~29V( 3%), relay contacts
|
|
LED(Green) : DC BUS OK : light ; DC BUS fail : dark
|
|
BATTERY FAIL Note.2
|
Relay contact : Short when battery failure is observed through the battery test function, relay contacts
|
|
LED(Red) : Battery over-discharge warning .or battery broken : light ; Battery OK : dark
|
|
BATTERY DISCHARGE
|
Relay contact : Short when battery in discharge condition, relay contacts
|
|
LED(Yellow) : Battery discharging : light ; Battery is not discharging .or discharging current<2.0A : dark
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-20 ~ +70
|
|
WORKING HUMIDITY
|
20 ~ 90% RH
|
|
STORAGE TEMP HUMIDITY
|
-20 ~ +85 , 10 ~ 95% RH
|
|
VIBRATION
|
Component : 10 ~ 500Hz, 2G 10min./1cycle, 60min. each X, Y, Z axes ; Mounting : Compliance to IEC600068-2-6
|
|
ENVIRONMENT
|
WITHSTAND VOLTAGE
|
Terminal-Chassis :0.5KVAC, Relay Contacts-Terminal :0.5KVAC
|
|
ISOLATION RESISTANCE
|
Terminal-Chassis :>100M Ohms/500VDC 25 70%RH
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55022 (CISPR22) Class B
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8, ENV50204, heavy industry level, criteria A
|
|
OTHERS
|
MTBF
|
161.9Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
55.5*125.2*100mm (W*H*D)
|
|
PACKING
|
0.55Kg; 20pcs/12Kg/1.29CUFT
|
|
NOTE
|
1. All parameters NOT specially mentioned are measured at rated load and 25 of ambient temperature.
2. Every 25 seconds, unit will send out test signal through "Battery Fail" relay contact and LED indicator once the battery is fail.
|
