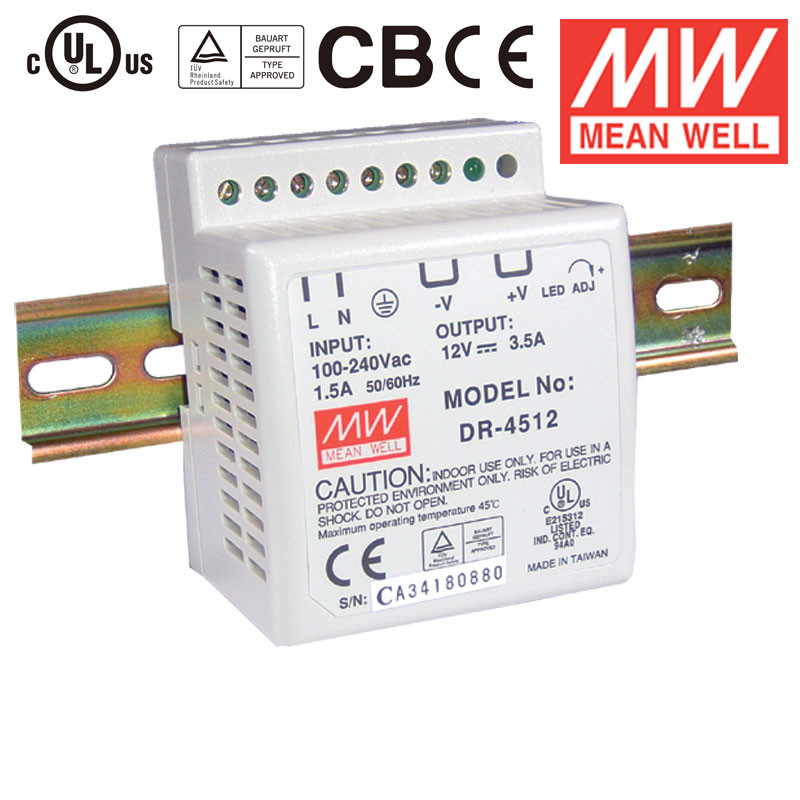

45W Single Output Industrial DIN Rail Power Supply DR-45 series
Features:
* Universal AC input/Full range
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* Can be installed on DIN rail TS-35/7.5 .or 15
* UL 508(industrial control equipment)approved
* LED indicator for power on
* 100% full load burn-in test
* Fix switching frequency at 100KHz
* 3 years warranty
Specifications:
|
MODEL
|
DR-45-05
|
DR-45-12
|
DR-45-15
|
DR-45-24
|
|
OUTPUT
|
DC VOLTAGE
|
5V
|
12V
|
15V
|
24V
|
|
CURRENT RANGE
|
0 ~ 5A
|
0 ~3. 5A
|
0 ~ 2.8A
|
0 ~ 2A
|
|
RATED CURRENT
|
5A
|
3.5A
|
2.8A
|
2A
|
|
RATED POWER
|
25W
|
42W
|
42W
|
48W
|
|
RIPPLE & NOISE (max.)
|
100mVp-p
|
200mVp-p
|
240mVp-p
|
480mVp-p
|
|
VOLTAGE ADJ. RANGE
|
4.75 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5 ~ 16.5V
|
21.6 ~ 26.4V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
|
SETUP, RISE TIME
|
800ms, 60ms/230VAC at full load
|
|
HOLD UP TIME
|
60ms/230VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
POWER FACTOR
|
|
|
EFFICIENCY
|
72%
|
77%
|
77%
|
80%
|
|
AC CURRENT
|
1.5A/115VAC 0.75A/230VAC
|
|
INRUSH CURRENT
|
COLD START 28A/115VAC 56A/230VAC
|
|
LEAKAGE CURRENT
|
<1mA / 240VAC
|
|
PROTECTION
|
OVER LOAD
|
105 ~ 150% rated output power
|
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
5.75 ~ 6.75V
|
13.8 ~ 16.2V
|
17.25 ~ 20.25V
|
27.6 ~ 32.4V
|
|
Protection type : Shut off o/p voltage, clamping by zener diode
|
|
OVER TEMPERATURE
|
Tj 135 typically (U1) detect on heat sink of power transistor
|
|
Protection type : Shut down o/p voltage, re-power on to recover
|
|
OTHERS
|
MTBF
|
364.6K hrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
93*78*67mm (L*W*H)
|
|
PACKING
|
0.31Kg; 48pcs/16.1Kg/1.3CUFT
|
