MODEL
|

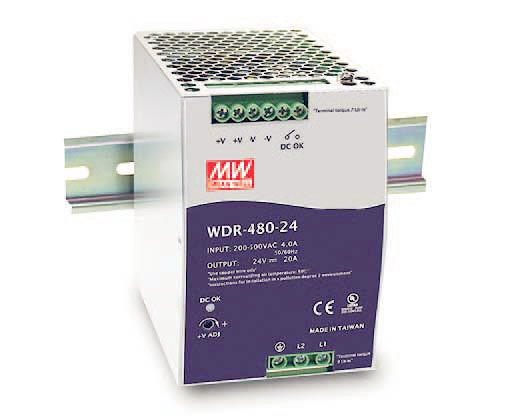

WDR-480-24
|
WDR-480-48
|
|
OUTPUT
|
DC VOLTAGE
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 20A
|
0 ~ 10A
|
|
RATED CURRENT
|
20A
|
10A
|
|
RATED POWER
|
480W
|
480W
|
|
RIPPLE & NOISE (max.)
|
100mVp-p
|
150mVp-p
|
|
VOLTAGE ADJ.RANGE
|
24 ~ 28V
|
48 ~ 55V
|
|
VOLTAGE TOLERANCE
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
1.0%
|
|
SETUP, RISE TIME
|
800ms, 150ms/400VAC 2000ms, 150ms/230VAC at full load
|
|
HOLD UP TIME (Typ.)
|
18ms / 400VAC 16ms / 230VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
180 ~ 550VAC 254 ~ 780VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
92%
|
|
AC CURRENT (Typ.)
|
1.6A/400VAC 4A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD STAR 50A
|
|
LEAKAGE CURRENT
|
<3.5mA / 530VAC
|
|
PROTECTION
|
OVERLOAD
|
105 ~ 130% rated output power
|
|
Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover
|
|
OVER VOLTAGE
|
29 ~ 33V
|
56 ~ 65V
|
|
Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
|
|
OVER TEMPERATURE
|
95 5 (TSW) detect on heatsink of power switch
|
|
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30 ~ +70 (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 95% RH non-condensing
|
|
TEMP. COEFFICIENT
|
0.03%/ (0 ~ 50 )
|
|
VIBRATION
|
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
|
|
SAFETY &EMC
|
SAFETY STANDARDS
|
UL508 approved, Design refer to GL
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25 / 70% RH
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A approved
|
|
OTHERS
|
MTBF
|
112.8Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
85.5*125.2*128.5mm (W*H*D)
|
|
PACKING
|
1.7Kg; 8pcs/14.6Kg/0.9CUFT
|
|
NOTE
|
1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power.
In case the adjacent device is a heat source, 15mm clearance is recommended.
6. Derating may be needed under low input voltage. Please check the derating curve for more details.
|
