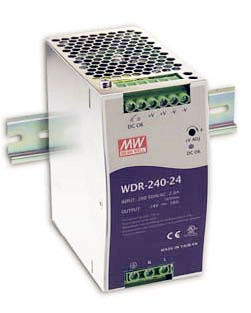

MODEL
|
WDR-240-24
|
WDR-240-48
|
|
OUTPUT
|
DC VOLTAGE
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 10A
|
0 ~ 5A
|
|
RATED CURRENT
|
10A
|
5A
|
|
RATED POWER
|
240W
|
240W
|
|
RIPPLE & NOISE (max.)
|
150mVp-p
|
150mVp-p
|
|
VOLTAGE ADJ.RANGE
|
24 ~ 28V
|
48 ~ 55V
|
|
VOLTAGE TOLERANCE
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
1.0%
|
|
SETUP, RISE TIME
|
1500ms, 150ms/400VAC 3000ms, 150ms/230VAC at full load
|
|
HOLD UP TIME (Typ.)
|
16ms / 400VAC 14ms / 230VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
180 ~ 550VAC 254 ~ 780VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
91%
|
|
AC CURRENT (Typ.)
|
1A/400VAC 2A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A
|
|
LEAKAGE CURRENT
|
<3.5mA / 530VAC
|
|
PROTECTION
|
OVERLOAD
|
105 ~ 130% rated output power
|
|
Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover
|
|
OVER VOLTAGE
|
29 ~ 33V
|
56 ~ 65V
|
|
Protection type : Shut down o/p voltage, re-power on to recover
|
|
OVER TEMPERATURE
|
85 5 (TSW) detect on heatsink of power switch
|
|
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30 ~ +70 (Refer to output load derating curve)
|
|
FUNCTION DC OK SIGNAL
|
60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
|
|
WORKING HUMIDITY
|
20 ~ 95% RH non-condensing
|
|
ENVIRONMENT STORAGE TEMP., HUMIDITY
|
-40 ~ +85 , 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/ (0 ~ 50 )
|
|
VIBRATION
|
Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip:
|
|
SAFETY &EMC
|
SAFETY STANDARDS
|
UL508 approved, Design refer to GL
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25 / 70% RH
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55022 (CISPR22) Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A approved
|
|
OTHERS
|
MTBF
|
Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
63*125.2*113.5mm (W*H*D)
|
|
PACKING
|
1.03Kg; 12pcs/13.4Kg/1.06CUFT
|
