SDR-240

Product:
SDR-240
Model Number:
Description:

Learn more about products detailed description, pricing and service, Please send mail to us!

sales@showlandpower.com

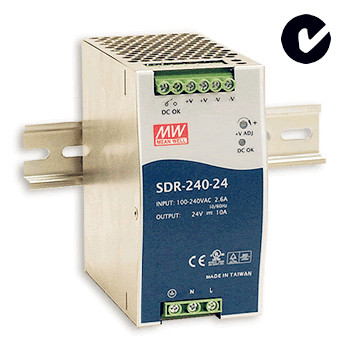

240W Single Output Industrial DIN RAIL with PFC Function SDR-240 series

Features:

* High efficiency 94% and low power dissipation

* 150% peak load capability

* Built-in active PFC function, PF>0.93

* Protections: Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* Can be installed on DIN rail TS-35/7.5 .or 15

* UL 508 (industrial control equipment) approved

* EN61000-6-2(EN50082-2) industrial immunity level

* Built-in DC OK relay contact

* 100% full load burn-in test

* 3 years warranty

Specifications:

MODEL		SDR-240-24	SDR-240-48
OUTPUT	DC VOLTAGE	24V	48V
	PEAK POWER	360W (3sec.)
	CURRENT RANGE	0 ~ 10A	0 ~ 5A
	RATED CURRENT	10A	5A
	RATED POWER	240W	240W
	RIPPLE & NOISE	100mVp-p	120mVp-p
	VOLTAGE ADJ. RANGE	24 ~ 28V	48 ~ 55V
	VOLTAGE TOLERANCE	1.0%
	LINE REGULATION	0.5%
	LOAD REGULATION	1.0%
	SETUP RISE TIME	1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
	HOLED UP TIME (TYP)	20ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	88 ~ 264VAC 124 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR(TYP)	0.93/230VAC 0.99/115VAC at full load
	EFFICIENCY (Typ.)	94%	94%
	AC CURRENT (Typ.)	2.6A/115VAC 1.3A/230VAC
	INRUSH CURRENT	33A/115VAC 65A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
ENVIRONMENT	WORKING TEMP	-25 ~ +70 (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP HUMIDITY	-40 ~ +85 , 10 ~ 95% RH
	TEMP. COEFFICIENT	0.03%/ (0 ~ 50 )
SAFETY &EMC	SAFETY STANDARDS	UL508, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25 / 70% RH
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
OTHERS	MTBF	169.3Khrs min. MIL-HDBK-217F (25 )
	DIMENSION	63125.2113.5mm (WHD)
	PACKING	1.03Kg; 12pcs/13.4Kg/1.06CUFT
