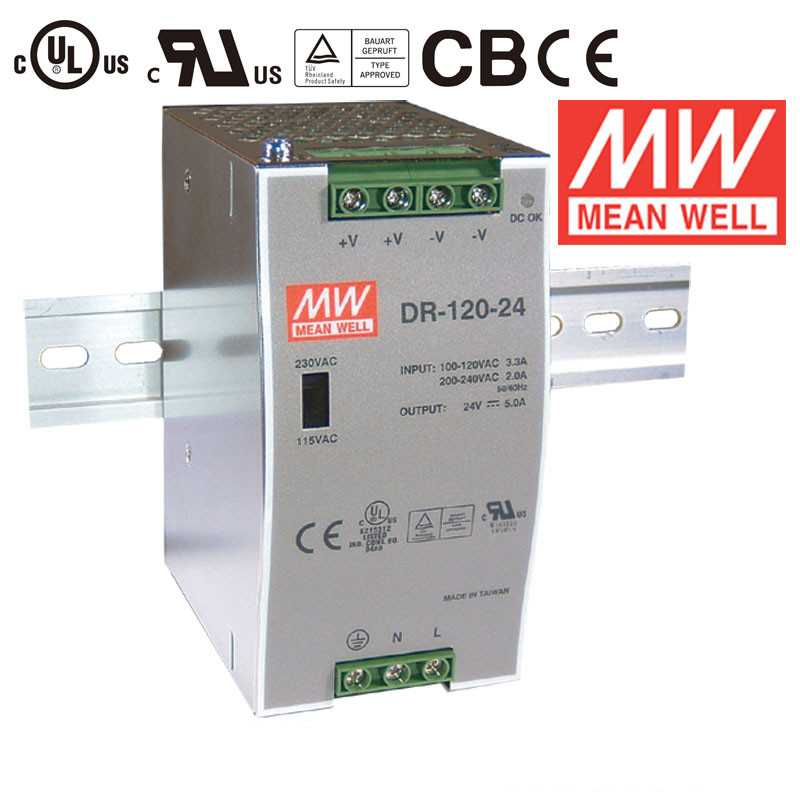

120W Single Output Industrial DIN RAIL Power Supply DR-120 series
Features:
* AC input range selectable by switch
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* Can be installed on DIN rail TS-35/7.5 .or 15
* UL 508(industrial control equipment)approved
* LED indicator for power on
* 100% full load burn-in test
* Fixed switching frequency at 55KHz
* 3 years warranty
Specifications:
|
MODEL
|
DR-120-12
|
DR-120-24
|
DR-120-48
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 10A
|
0 ~ 5A
|
0 ~ 2.5A
|
|
RATED CURRENT
|
10A
|
5A
|
2.5A
|
|
RATED POWER
|
120W
|
120W
|
120W
|
|
RIPPLE & NOISE
|
80mVp-p
|
80mVp-p
|
100mVp-p
|
|
VOLTAGE ADJ. RANGE
|
12 ~ 14V
|
24 ~ 28V
|
48 ~ 53V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
1.0%
|
|
SETUP RISE TIME
|
500ms, 70ms/230VAC 500ms, 70ms/115VAC at full load
|
|
HOLD UP TIME
|
36ms/230VAC 32ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 132VAC/176 ~ 264VAC by switch 248 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
POWER FACTOR
|
|
|
EFFICIENCY
|
80%
|
84%
|
85%
|
|
AC CURRENT
|
2.6A/115VAC 1.6A/230VAC
|
|
INRUSH CURRENT
|
COLD START 20A/115VAC 40A/230VAC
|
|
LEAKAGE CURRENT
|
<3.5mA / 240VAC
|
|
PROTECTION
|
OVER LOAD
|
105 ~ 150% rated output power
|
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
15 ~ 16.5V
|
29 ~ 33V
|
58 ~ 65V
|
|
Protection type : Shut down o/p voltage, re-power on to recover
|
|
OVER TEMP
|
85 5 (TSW1)
|
90 5 (TSW1)
|
90 5 (TSW1)
|
|
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
|
|
OTHERS
|
MTBF
|
136.8Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
65.5*125.2*100mm (W*H*D)
|
|
PACKING
|
0.79Kg; 20pcs/16.5Kg/1.29CUFT
|
