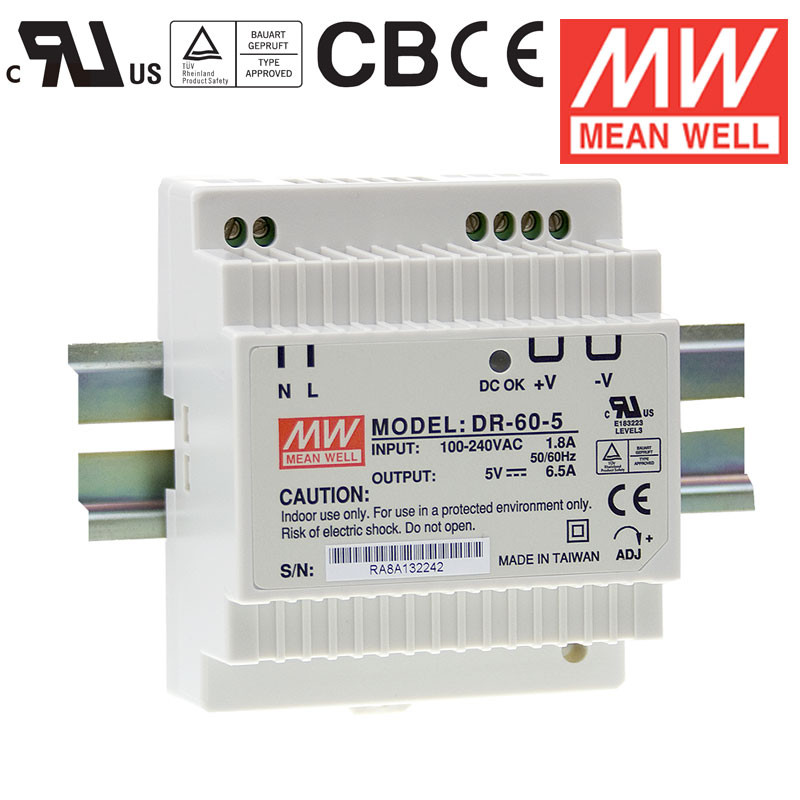

60W Single Output Industrial DIN Rail Power Supply DR-60 series
Features:
* Universal AC input/Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* Can be installed on DIN rail TS-35/7.5 .or 15
* UL 508(industrial control equipment)approved
* Isolation class
* LED indicator for power on
* 100% full load burn-in test
* 3 years warranty
Specifications:
|
MODEL
|
DR-60-5
|
DR-60-12
|
DR-60-15
|
DR-60-24
|
|
OUTPUT
|
DC VOLTAGE
|
5V
|
12V
|
15V
|
24V
|
|
CURRENT RANGE
|
0 ~ 6.5A
|
0 ~ 4.5A
|
0 ~ 4A
|
0 ~ 2.5A
|
|
RATED CURRENT
|
6.5A
|
4.5A
|
4A
|
2.5A
|
|
RATED POWER
|
32.5W
|
54W
|
60W
|
60W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
150mVp-p
|
|
VOLTAGE ADJ. RANGE
|
4.75 ~ 5.5V
|
11.1 ~ 13.2V
|
13.5 ~ 16.5V
|
21.6 ~ 26.4V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
|
SETUP, RISE TIME
|
100ms, 30ms/230VAC 200ms, 30ms/115VAC at full load
|
|
HOLD UP TIME (Typ.)
|
100ms/230VAC 23ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 124 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
76%
|
82%
|
83%
|
84%
|
|
AC CURRENT (Typ.)
|
1.2A/115VAC 0.8A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 18A/115VAC 36A/230VAC
|
|
PROTECTION
|
OVER LOAD
NOTE.5
|
105 ~ 160% rated output power
|
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed
|
|
SHORT CIRCUIT
|
|
|
|
|
|
OVER VOLTAGE
|
5.75 ~ 6.75V
|
13.8 ~ 16.2V
|
17.25 ~ 20.25V
|
27.6 ~ 32.4V
|
|
Protection type : Shut down o/p voltage, re-power on to recover
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-20 ~ +60 (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-40 ~ +85 , 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/ (0 ~ 50 )
|
|
VIBRATION
|
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
|
|
SAFETY &EMC
|
SAFETY STANDARDS
|
UL60950-1, TUV EN60950-1 approved, design refer to EN50178
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P:100M Ohms/500VDC
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55011,EN55022 (CISPR22) Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
|
|
OTHERS
|
MTBF
|
216.2K hrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
78*93*56mm (W*H*D)
|
|
PACKING
|
0.3Kg; 48pcs/15.4Kg/1.02CUFT
|
