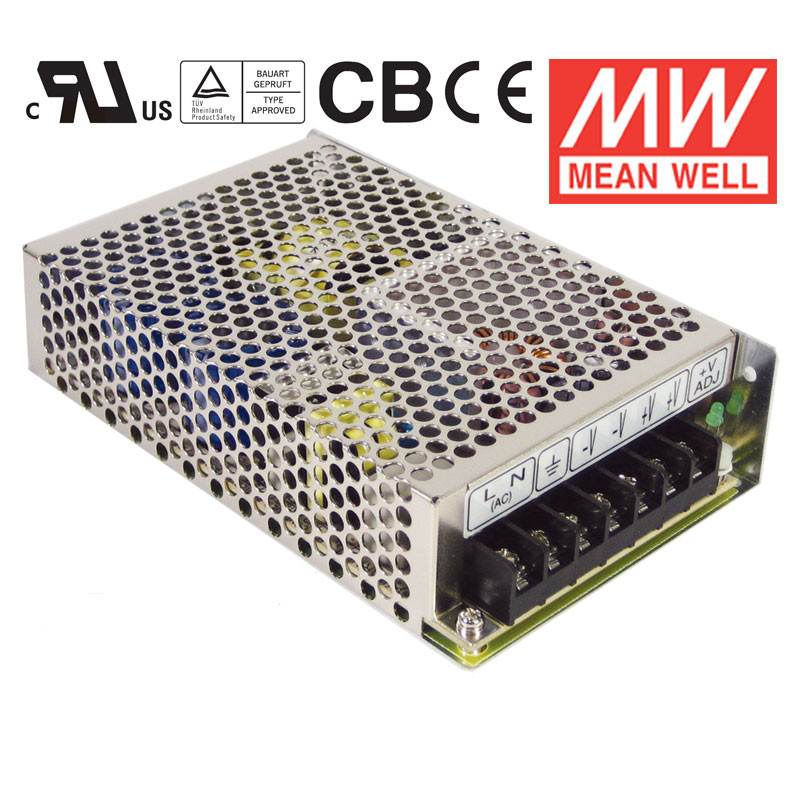

85W Quad Output Switching Power Supply RQ -85 series
Features:
* Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105oClong life electrolytic capacitors
* Withstand 300VAC surge input for 5 second
* High operating temperature up to 70oC
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
|
MODEL
|
RQ-85B
|
|
OUTPUT
|
OUT PUTNUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
12V
|
-5V
|
-12V
|
|
CURRENT RANGE
|
2~ 10A
|
0.3~4A
|
0 ~ 1A
|
0 ~ 1A
|
|
RATED CURRENT
|
7A
|
3.1A
|
0.5A
|
0.5A
|
|
RATED POWER
|
80.7W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
100mVp-p
|
80mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
+7,-3%
|
8.0%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
1.0%
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
6.0%
|
2.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC 30ms/115VAC at full load
|
|
HOLD TIME
|
100ms/230VAC 18ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
76%
|
|
AC CURRENT
|
2.5A/115VAC 1.5A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/115VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
206.8Khrs min. MIL-HDBK-217F
|
|
DIMENSION
|
159*97*38mm (L*W*H)
|
|
PACKING
|
0.6Kg; 24pcs/15.4Kg/0.7CUFT
|
|
MODEL
|
RQ-85C
|
|
OUTPUT
|
OUT PUTNUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
15V
|
-5V
|
-15V
|
|
CURRENT RANGE
|
2~ 10A
|
0.3~4A
|
0 ~ 1A
|
0 ~ 1A
|
|
RATED CURRENT
|
7A
|
2.5A
|
0.5A
|
0.5A
|
|
RATED POWER
|
82.5W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
100mVp-p
|
80mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
+3,-7%
|
8.0%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
1.0%
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
6.0%
|
2.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC 30ms/115VAC at full load
|
|
HOLD TIME
|
100ms/230VAC 18ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
77%
|
|
AC CURRENT
|
2.5A/115VAC 1.5A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/115VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
206.8Khrs min. MIL-HDBK-217F
|
|
DIMENSION
|
159*97*38mm (L*W*H)
|
|
PACKING
|
0.6Kg; 24pcs/15.4Kg/0.7CUFT
|
|
MODEL
|
RQ-85D
|
|
OUTPUT
|
OUT PUTNUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
12V
|
24V
|
-12V
|
|
CURRENT RANGE
|
2~ 10A
|
0.3~4A
|
0.1~1.5A
|
0 ~ 1A
|
|
RATED CURRENT
|
6A
|
2A
|
1A
|
0.5A
|
|
RATED POWER
|
84W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
150mVp-p
|
80mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
+7,-3%
|
8.0%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
1.0%
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
5.0%
|
2.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC 30ms/115VAC at full load
|
|
HOLD TIME
|
100ms/230VAC 18ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
78%
|
|
AC CURRENT
|
2.5A/115VAC 1.5A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/115VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
206.8Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
159*97*38mm (L*W*H)
|
|
PACKING
|
0.6Kg; 24pcs/15.4Kg/0.7CUFT
|
