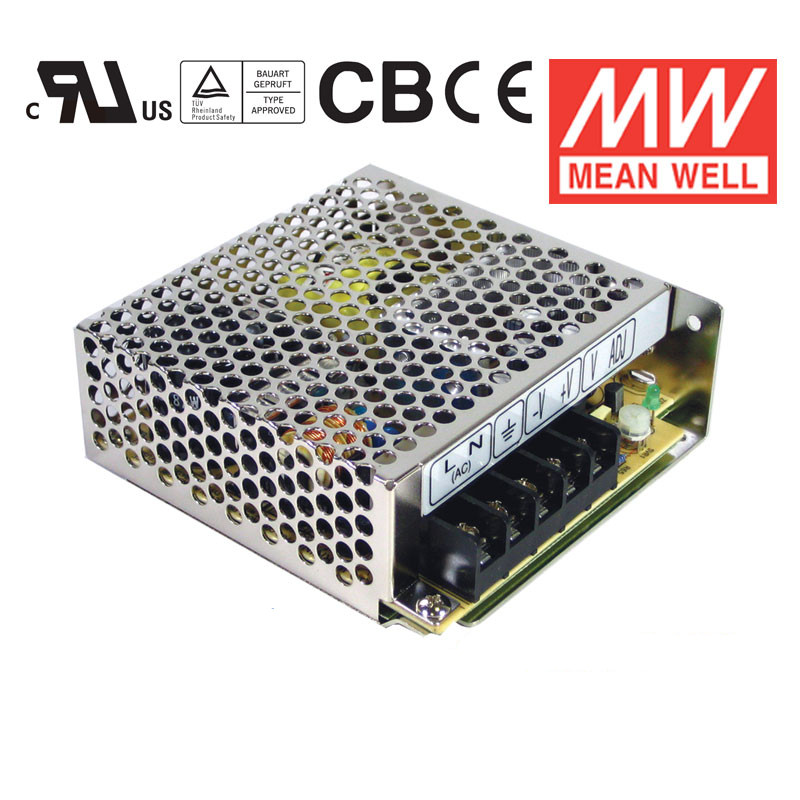

MODEL
|
RD-50A
|
RD-50B
|
|
OUTPUT
|
OUTPUT NUMBER
|
CH1
|
CH2
|
CH1
|
CH2
|
|
DC VOLTAGE
|
5V
|
12V
|
5V
|
24V
|
|
CURRENT RANGE
|
0.3 ~ 6A
|
0.3 ~ 3A
|
0.3 ~ 6A
|
0.2 ~ 2A
|
|
RATED CURRENT
|
6A
|
2A
|
4A
|
1.4A
|
|
RATED POWER
|
54W
|
53.6W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
80mVp-p
|
150mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1 : 4.75 ~ 5.5V
|
CH1 : 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
7.0%
|
2.0%
|
-4,+8%
|
|
LINE REGULATION
|
0.5%
|
1.5%
|
0.5%
|
1.5%
|
|
LOAD REGULATION
|
0.5%
|
3.0%
|
0.5%
|
3.0%
|
|
SETUP RISE TIME
|
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
|
|
HOLD UP TIME (Typ.)
|
60ms/230VAC 12ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
79%
|
80%
|
|
AC CURRENT (Typ.)
|
1.3A/115VAC 0.8A/230VAC
|
|
INRUSH CURRENT
|
COLD START 33A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
PROTECTION
|
OVER LOAD
|
110 ~ 150% rated output power
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
CH1: 5.75 ~ 6.75V
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
ENVIRONMENT
|
WORKING TEMP
|
-25 ~ +70oC (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP. HUMIDITY
|
-20 ~ +85oC , 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/oC (0 ~ 50oC )
|
|
VIBRATION
|
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
|
|
SAFETY &EMC
|
SAFETY STANDARDS
|
UL60950-1, TUV EN60950-1 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55022 (CISPR22) Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
|
|
OTHERS
|
MTBF
|
172.6Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
99*97*36mm (L*W*H)
|
|
PACKING
|
0.41Kg; 45pcs/19.5Kg/0.9CUFT
|
|
NOTE
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.
|
