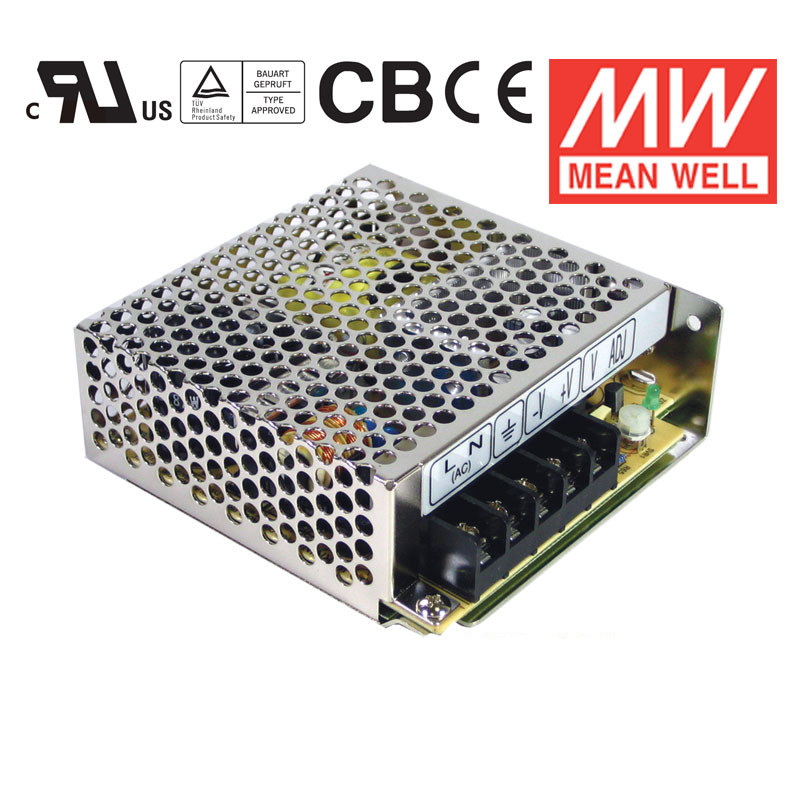

50W Triple Output Switching Power Supply RT-50 series
Features:
* Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105 long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
|
MODEL
|
RT-50A
|
RT-50B
|
|
OUTPUT
|
OUT PUTNUMBER
|
CH1
|
CH2
|
CH3
|
CH1
|
CH2
|
CH3
|
|
DC VOLTAGE
|
5V
|
12V
|
-5V
|
5V
|
12V
|
-12V
|
|
CURRENT RANGE
|
0.5 ~ 5A
|
0.2~2.5A
|
0.1 ~ 1A
|
0.5 ~ 5A
|
0.2~2.5A
|
0.1 ~ 1A
|
|
RATED CURRENT
|
4A
|
2A
|
0.5A
|
4A
|
2A
|
0.5A
|
|
RATED POWER
|
46.5W
|
50W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
100mVp-p
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1:4.75 ~ 5.5V
|
CH1:4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
6.0%
|
2.0%
|
2.0%
|
6.0%
|
2.0%
|
|
LINE REGULATION
|
0.5%
|
1.5%
|
0.5%
|
0.5%
|
1.5%
|
0.5%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
1.0%
|
1.0%
|
3.0%
|
1.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
|
|
HOLD TIME (Typ.)
|
60ms/230VAC 10ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
77%
|
77%
|
|
AC CURRENT (Typ.)
|
1.3A/115VAC 0.8A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 36A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
169.2Khrs min. MIL-HDBK-217F
|
|
DIMENSION
|
99*97*36mm (L*W*H)
|
|
PACKING
|
0.41Kg; 45pcs/19.5Kg/0.9CUFT
|
|
MODEL
|
RT-50C
|
RT-50D
|
|
OUTPUT
|
OUT PUTNUMBER
|
CH1
|
CH2
|
CH3
|
CH1
|
CH2
|
CH3
|
|
DC VOLTAGE
|
5V
|
15V
|
-15V
|
5V
|
24V
|
12V
|
|
CURRENT RANGE
|
0.5 ~ 5A
|
0.2 ~ 2A
|
0.1 ~ 1A
|
0.5 ~ 5A
|
0.2 ~ 1.5A
|
0.1 ~ 1A
|
|
RATED CURRENT
|
4A
|
1.5A
|
0.5A
|
3A
|
1A
|
1A
|
|
RATED POWER
|
50W
|
51W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
8mVp-p
|
150mVp-p
|
120mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1:4.75 ~ 5.5V
|
CH1:4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
+8,-4%
|
2.0%
|
2.0%
|
+ 8,-4%
|
6.0%
|
|
LINE REGULATION
|
0.5%
|
1.5%
|
0.5%
|
0.5%
|
2.0%
|
2.0%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
1.0%
|
1.0%
|
3.0%
|
4.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
|
|
HOLD TIME (Typ.)
|
60ms/230VAC 10ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
78%
|
80%
|
|
AC CURRENT (Typ.)
|
1.3A/115VAC 0.8A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 36A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
169.2Khrs min. MIL-HDBK-217F
|
|
DIMENSION
|
99*97*36mm (L*W*H)
|
|
PACKING
|
0.41Kg; 45pcs/19.5Kg/0.9CUFT
|
