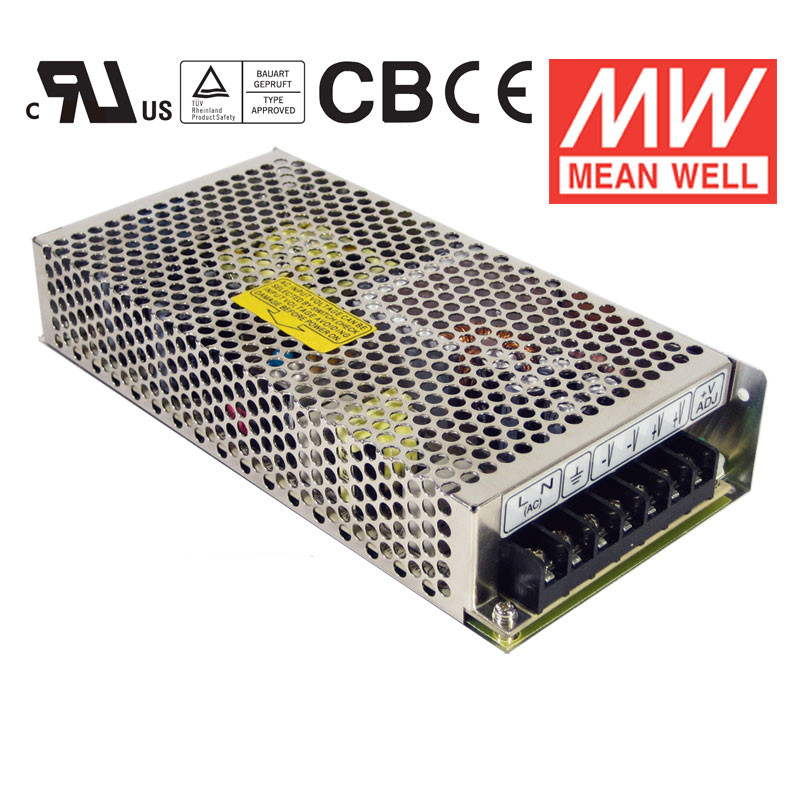

150W Single Output Switching Power Supply RS-150 series

Features:
*  Protections: Short circuit / Overload / Over voltage
*  Cooling by free air convection
*  LED indicator for power on
*  100% full load burn-in test
*  All using 105long life electrolytic capacitors
*  Withstand 300VAC surge input for 5 second
*  High operating temperature up to 70oC
*  Withstand 5G vibration test
*  High efficiency, long life and high reliability
*  3 years warranty

Specifications:

MODEL

RS-150-3.3

RS-150-5

RS-150-12

RS-150-15

RS-150-24

RS-150-48











OUTPUT

DC VOLTAGE

3.3V

5V

12V

15V

24V

48V

CURRENT RANGE

0 ~ 30A

0 ~ 26A

0~ 12.5A

0 ~ 10A

0 ~ 6.5A

0 ~ 3.3A

RATED CURRENT

30A

26A

12.5A

10A

6.5A

3.3A

RATED POWER

99W

130W

150W

150W

156W

158.4W

RIPPLE & NOISE

80mVp-p

80mVp-p

120mVp-p

120mVp-p

120mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

3.2V ~ 3.5V

4.75 ~ 5.5V

11.4 ~ 13.2V

14.25 ~ 16.5V

22.8 ~ 26.4V

45.6 ~ 52.8V

VOLTAGE TOLERANCE

3.0%

2.0%

1.0%

1.0%

1.0%

1.0%

LINE REGULATION

0.5%

LOAD REGULATION

2.0%

1.0%

0.5%

0.5%

0.5%

0.5%

SETUP RISE TIME

800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load

HOLD UP TIME

28ms/230VAC   20ms/115VAC at full load





INPUT

VOLTAGE RANGE

88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)

FREQUENCY

47 ~ 63Hz

EFFICIENCY

74%

78%

83%

84%

86%

87%

AC CURRENT

3A/115VAC 2A/230VAC

INRUSH CURRENT

COLD START 40A/230VAC

LEAKAGE CURRENT

<2mA / 240VAC

 OTHERS

MTBF

244KHrs min. MIL-HDBK-217F (25 )

DIMENSION

199*98*38mm (L*W*H)

PACKING

0.7Kg; 20pcs/15Kg/0.8CUFT
