RD-35

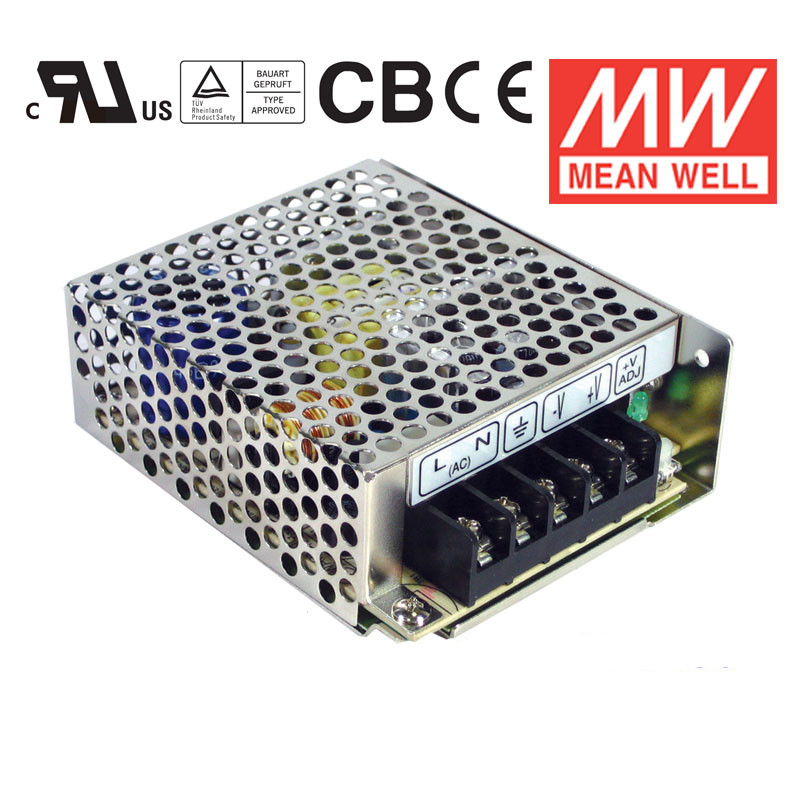

35W Dual Output Switching Power Supply RD-35 series
Features: * Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105long life electrolytic capacitors
* Withstand 300VAC surge input for 5 second
* High operating temperature up to 70oC
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications: MODEL RD-35A RD-35B RD-3513 OUTPUT OUTPUT NUMBER CH1 CH2 CH1 CH2 CH1 CH2 DC VOLTAGE 5V 12V 5V 24V 13.5V -13.5V CURRENT RANGE 0.3 ~ 4A 0.2 ~ 1A 0.3 ~ 4A 0.2~1.3A 0.3 ~ 2A 0.2~1.5A RATED CURRENT 4A 1A 2.2A 1A 1.3A 1.3A RATED POWER 32W 35W 35.1W RIPPLE & NOISE 80mVp-p 120mVp-p 80mVp-p 120mVp-p 120mVp-p 120mVp-p VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V CH1: 4.75 ~ 5.5V CH1: 11.5 ~ 15.5V VOLTAGE TOLERANCE 2.0% 6.0% 2.0% 5.0% 4.0% 4.0% LINE REGULATION 0.5% 1.5% 0.5% 1.0% 0.5% 0.5% LOAD REGULATION 0.5% 3.0% 0.5% 2.0% 3.0% 3.0% SETUP, RISE TIME 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load HOLD TIME 80ms/230VAC 16ms/115VAC at full load INPUT VOLTAGE RANGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR EFFICIENCY 79% 79% 82% 82% 80% 80% AC CURRENT 0.8A/115VAC 0.55A/230VAC INRUSH CURRENT COLD START 36A/230VAC LEAKAGE CURRENT <2mA / 240VAC PROTECTION OVER LOAD 110 ~ 150% rated output power Protection type : Hiccup mode, recov, , ers automatically after fault condition is removed OVER VOLTAGE CH1: 5.75 ~ 6.75V CH1: 16.87 ~ 19.57V Protection type : Hiccup mode, recovers automatically after fault condition is removed OVER TEMPERATURE ENVIRONMENT WORKING TEMP. -25 ~ +65oC(Refer to output load derating curve) WORKING HUMIDITY 20 ~ 90% RH non-condensing STORAGE TEMP., HUMIDITY -40 ~ +85oC , 10 ~ 95% RH TEMP. COEFFICIENT 0.03%/oC(0 ~ 45oC ) on CH1 output VIBRATION 10 ~ 500Hz,5G 10min./1cycle, period for 60min. each along X, Y, Z axes SAFETY &EMC(Note 4) SAFETY STANDARDS UL60950, TUV EN60950 Approved WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A OTHERS MTBF 179Khrs min. MIL-HDBK-217F (25 ) DIMENSION 99*82*36mm (L*W*H) PACKING 0.3Kg; 45pcs/14Kg/0.83CUFT NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
