RD-85

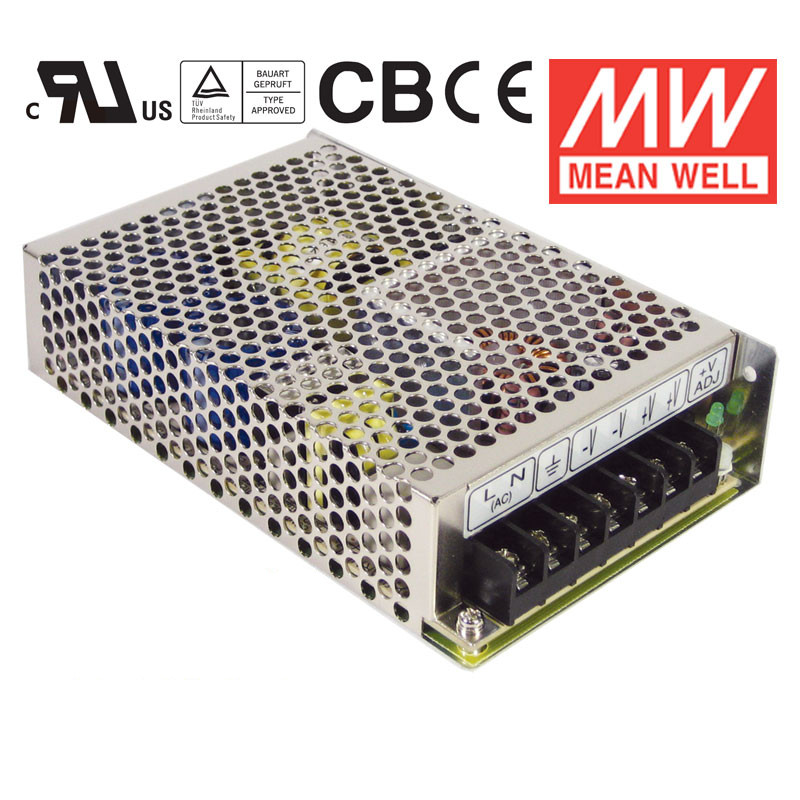

85W Dual Output Switching Power Supply RD-85 series
Features: * Isolated output & GND for CH1,CH2
* Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105long life electrolytic capacitors
* Withstand 300VAC surge input for 5 second
* High operating temperature up to 70oC
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
MODEL RD-85A RD-85B OUTPUT OUTPUT NUMBER CH1 CH2 CH1 CH2 DC VOLTAGE 5V 12V 5V 24V CURRENT RANGE 2 ~ 10A 0.3 ~ 5A 2 ~ 10A 0.3 ~ 2.5A RATED CURRENT 8A 4A 8A 2A RATED POWER 88W 88W RIPPLE & NOISE (max.) 80mVp-p 120mVp-p 80mVp-p 120mVp-p VOLTAGE ADJ. RANGE CH1 : 4.75 ~ 5.5V CH1 : 4.75 ~ 5.5V VOLTAGE TOLERANCE 2.0% 5.0% 2.0% 5.0% LINE REGULATION 0.5% 1.0% 0.5% 1.0% LOAD REGULATION 1.0% 3.0% 1.0% 3.0% SETUP RISE TIME 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load HOLD UP TIME (Typ.) 100ms/230VAC 18ms/115VAC at full load INPUT VOLTAGE RANGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) FREQUENCY RANGE 47 ~ 63Hz EFFICIENCY (Typ.) 78% 80% AC CURRENT (Typ.) 2.5A/115VAC 1.5A/230VAC INRUSH CURRENT (Typ.) COLD START 40A/230VAC LEAKAGE CURRENT <2mA / 240VAC PROTECTION OVER LOAD 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed OVER VOLTAGE CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed DC OK ACTIVE SIGNAL(MAX.) ENVIRONMENT WORKING TEMP. -25 ~ +70oC (Refer to output load derating curve) WORKING HUMIDITY 20 ~ 90% RH non-condensing STORAGE TEMP HUMIDITY -40 ~ +85oC , 10 ~ 95% RH TEMP. COEFFICIENT 0.03%/oC(0 ~ 50oC ) on +5V output VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes SAFETY &EMC SAFETY STANDARDS UL60950-1, TUV EN60950-1 approved WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC EMI CONDUCTION & RA, DIATION Compliance to EN55022 (CISPR22) Class B HARMONIC CURRENT Compliance to EN61000-3-2,-3 EMS IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A OTHERS MTBF 239.4Khrs min. MIL-HDBK-217F (25 ) DIMENSION 159*97*38mm (L*W*H) PACKING 0.6Kg; 24pcs/15.4Kg/0.7CUFT
