RS-75

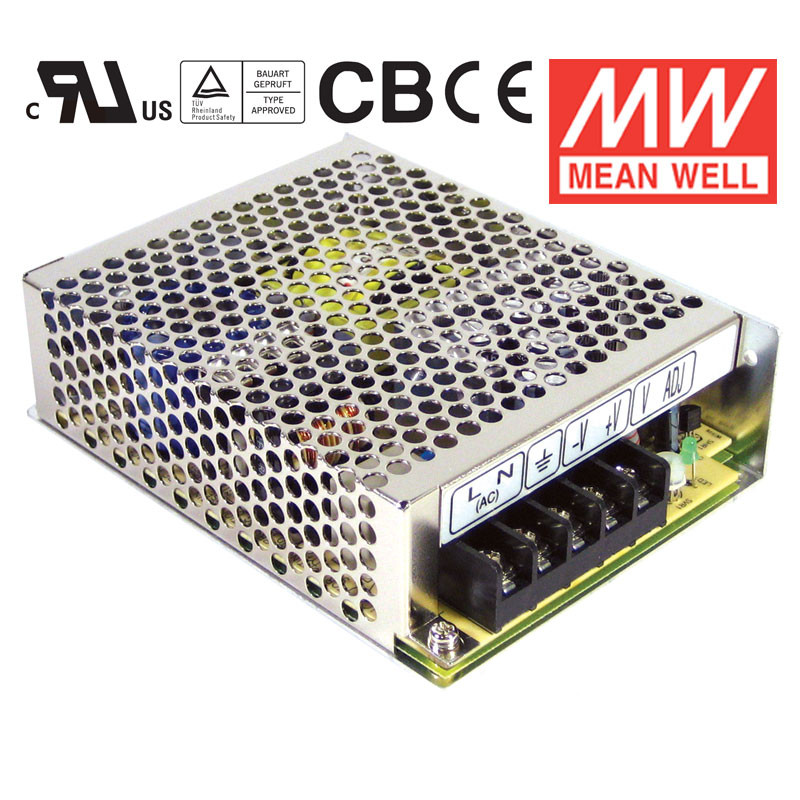

75W Single Output Switching Power Supply RS-75 series
Features: * Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105long life electrolytic capacitors
* Withstand 300VAC surge input for 5 second
* High operating temperature up to 70oC
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications: MODEL RS-75-3.3 RS-75-5 RS-75-12 RS-75-15 RS-75-24 RS-75-48 OUTPUT DC VOLTAGE 3.3V 5V 12V 15V 24V 48V CURRENT RANGE 0 ~ 15A 0 ~ 12A 0 ~ 6A 0 ~ 5A 0 ~ 3.2A 0 ~ 1.6A RATED CURRENT 15A 12A 6A 5A 3.2A 1.6A RATED POWER 49.5W 60W 72W 75W 76.8W 76.8W RIPPLE & NOISE 80mVp-p 80mVp-p 120mVp-p 120mVp-p 120mVp-p 200mVp-p VOLTAGE ADJ. RANGE 3V ~ 3.6V 4.75 ~ 5.5V 10.8 ~ 13.2V 13.5 ~ 16.5V 22 ~ 27.2V 42 ~ 54V VOLTAGE TOLERANCE 3.0% 2.0% 1.0% 1.0% 1.0% 1.0% LINE REGULATION 0.5% LOAD REGULATION 2.0% 1.0% 0.5% 0.5% 0.5% 0.5% SETUP, RISE TIME 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load HOLD UP TIME 60ms/230VAC 14ms/115VAC at full load INPUT VOLTAGE 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) FREQUENCY 47 ~ 63Hz EFFICIENCY 75% 79% 84.5% 86% 88.5% 89.5% AC CURRENT 2A/115VAC 1.2A/230VAC INRUSH CURRENT COLD START 40A/230VAC LEAKAGE CURRENT <2mA / 240VAC OTHERS MTBF 265Khrs min. MIL-HDBK-217F (25 ) DIMENSION 129*97*38mm (L*W*H) PACKING 0.41Kg; 30pcs/13.3Kg/0.86CUFT
