RS-50

Product:
RS-50
Model Number:
Description:

Learn more about products detailed description, pricing and service, Please send mail to us!

sales@showlandpower.com

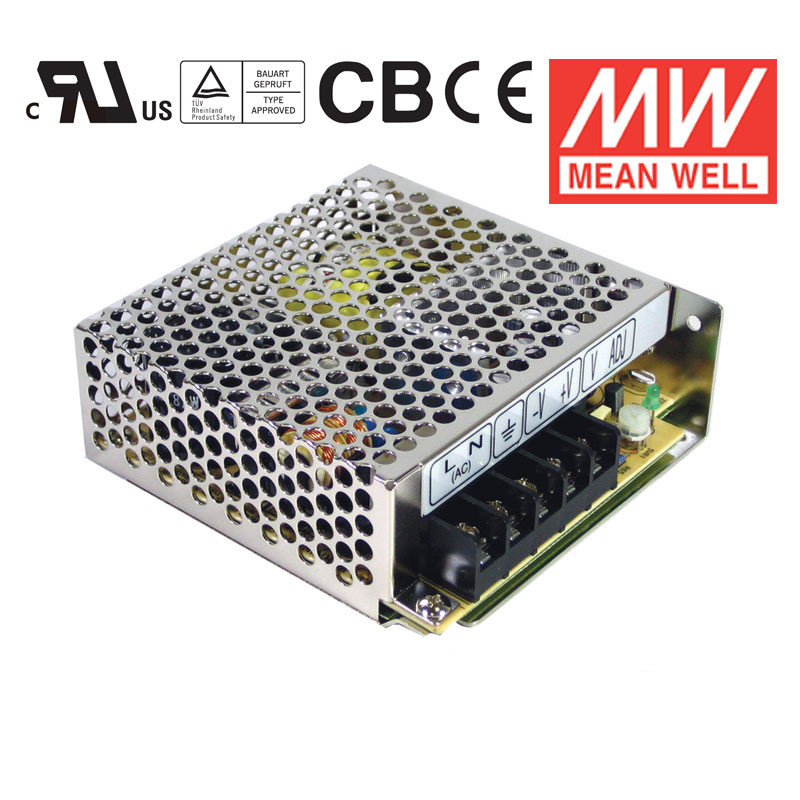

50W Single Output Switching Power Supply RS-50 series

Features:

* Universal AC input / Full range

* Protections: Short circuit / Overload / Over voltage

* Cooling by free air convection

* LED indicator for power on

* 100% full load burn-in test

* All using 105^oC long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70^oC

* Withstand 5G vibration test

* No load power consumption<0.5W

* High efficiency, long life and high reliability

* 3 years warranty

Specifications:

MODEL		RS-50-3.3	RS-50-5	RS-50-12	RS-50-15	RS-50-24	RS-50-48
OUTPUT	DC VOLTAGE	3.3V	5V	12V	15V	24V	48V
	CURRENT RANGE	0 ~ 10A	0 ~ 10A	0 ~ 4.2A	0 ~ 3.4A	0 ~ 2.2A	0 ~ 1.1A
	RATED CURRENT	10A	10A	4.2A	3.4A	2.2A	1.1A
	RATED POWER	33W	50W	50.4W	51W	52.8W	52.8W
	RIPPLE & NOISE	80mVp-p	80mVp-p	120mVp-p	120mVp-p	120mVp-p	200mVp-p
	VOLTAGE ADJ.	3V ~ 3.6V	4.75 ~ 5.5V	10.8 ~ 13.2V	13.5 ~ 16.5V	22 ~ 27.2V	42 ~ 54V
	VOLTAGE TOLERANCE	3.0%	2.0%	1.0%	1.0%	1.0%	1.0%
	LINE REGULATION	0.5%
	LOAD REGULATION	2.0%	1.0%	0.5%	0.5%	0.5%	0.5%
	SETUP RISE TIME	500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
	HOLD UP TIME	60ms/230VAC 14ms/115VAC at full load
INPUT	VOLTAGE	88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
	FREQUENCY	47 ~ 63Hz
	EFFICIENCY	78%	83%	84.5%	86%	88%	89%
	AC CURRENT	1.3A/115VAC 0.8A/230VAC
	INRUSH CURRENT	COLD START 33A/230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
OTHERS	MTBF	228Khrs min. MIL-HDBK-217F (25 )
	DIMENSION	999736mm (LWH)
	PACKING	0.41Kg; 45pcs/19.5Kg/0.9CUFT
