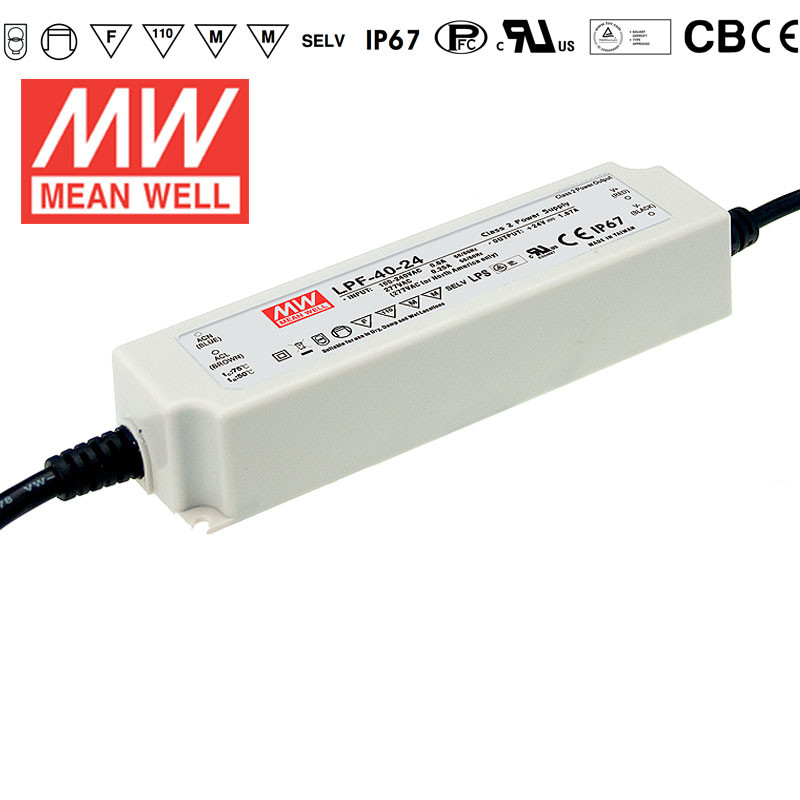

LPF-40D
Features: MODEL LPF-40D-12 LPF-40D-15 LPF-40D-20 LPF-40D-24 LPF-40D-30 LPF-40D-36 LPF-40D-42 LPF-40D-48 LPF-40D-54 OUTPUT DC VOLTAGE 12V 15V 20V 24V 30V 36V 42V 48V 54V CONSTANT CURRENT REGION Note.4 7.2 ~12V 9 ~ 15V 12 ~ 20V 14.4~ 24V 18 ~ 30V 21.6~ 36V 25.2~ 42V 28.8~ 48V 32.4~ 54V RATED CURRENT 3.34A 2.67A 2A 1.67A 1.34A 1.12A 0.96A 0.84A 0.76A RATED POWER 40W 40W 40W 40W 40.2W 40.32W 40.32W 40.32W 41.04W RIPPLE & NOISE (max.)? Note.2 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 250mVp-p 250mVp-p 250mVp-p 350mVp-p VOLTAGE ADJ. RANGE VOLTAGE TOLERANCE?? Note.3 4.0% 4.0% 4.0% 4.0% 4.0% 4.0% 4.0% 4.0% 4.0% LINE REGULATION 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% LOAD REGULATION 2.0% 1.5% 1.0% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% SETUP, RISE TIME 1000ms, 80ms / 115VAC at full load 1000ms, 80ms / 230VAC HOLD UP TIME (Typ.) 16ms at full load 230VAC /115VAC INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC FREQUENCY RANGE 47 ~ 63Hz POWER FACTOR PF 0.95/230VAC PF 0.98/115VAC at full load and rated output voltage PF 0.9 at 60 ~ 100% load EFFICIENCY (Typ.) 84% 85% 86% 87% 88% 88% 89% 90% 90% AC CURRENT (Typ.) 0.6A / 115VAC 0.3A / 230VAC INRUSH CURRENT (Typ.) COLD START 75A/230VAC LEAKAGE CURRENT <0.75mA / 240VAC PROTECTION OVERCURRENT 95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed. OVER VOLTAGE 14 ~ 16V 17.5 ~ 21V 23 ~ 27V 28 ~ 35V 34 ~ 38V 41 ~ 49V 46 ~ 54V 54 ~ 63V 59 ~ 65V Protection type : Shut down o/p voltage with auto-recovery .or re-power on to recovery OVER TEMPERATURE 105? 5 (RTH2) Protection type : Shut down o/p voltage, recovers automatically after temperature goes down ENVIRONMENT WORKING TEMP. -30 ~ +50 @ full load ; +70 @ 60% load (Refer to derating curve)? ; -40 can power on WORKING HUMIDITY 20 ~ 95% RH non-condensing STORAGE TEMP., HUMIDITY -40 ~ +80 , 10 ~ 95% RH TEMP. COEFFICIENT 0.03%/ (0 ~ 50 ) VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes SAFETY &EMC(Note 4) SAFETY STANDARDS UL8750, EN61347-1, EN61347-2-13 independent, IP67 approved ; Design refer to UL60950-1, TUV EN60950-1 WITHSTAND VOLTAGE I/P-O/P:3KVAC ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25 / 70%RH EMI CONDUCTION & RADIATION Compliance to EN55015, Class B HARMONIC CURRENT Compliance to EN61000-3-2,CLASS C( 60% load),EN61000-3-3 EMS Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, heavy industry level, criteria A OTHERS MTBF Khrs min. MIL-HDBK-217F (25 ) DIMENSION 162.5*43.5*32mm (L*W*H) PACKING Kg; 32pcs/ Kg/0.56CUFT
