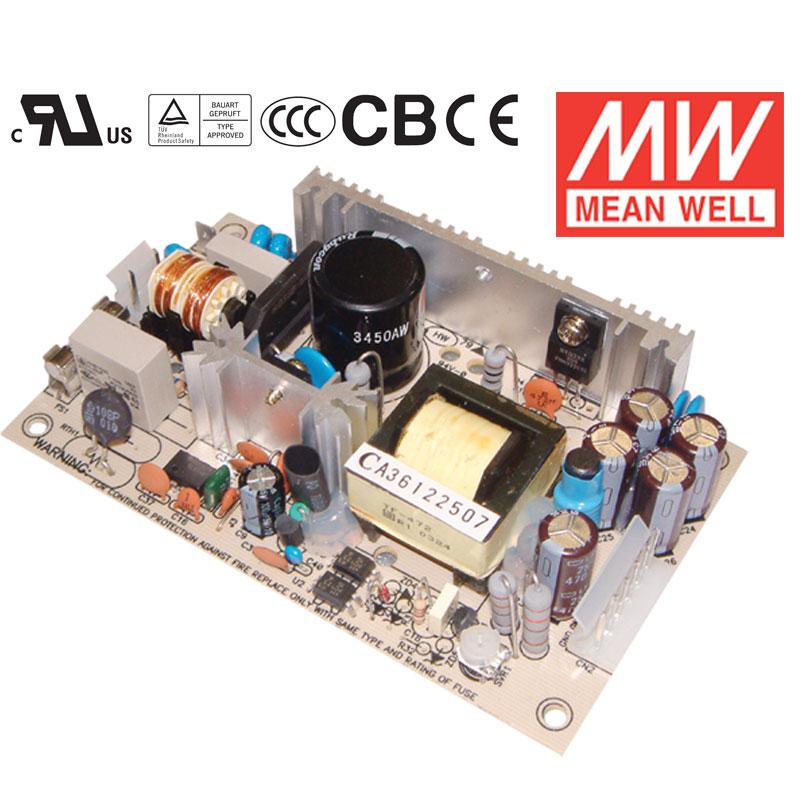

45W Single Output Switching Power Supply PS-45 series
Features: * Universal AC input/Full range
* Low leakage current<0.5mA
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* 100% full load burn-in test
* Fixed switching frequency at 65KHz
* 2 years warranty
Specifications:
MODEL
PS-45-3.3
PS-45-5
PS-45-7.5
PS-45-12
OUTPUT
DC VOLTAGE
3.3V
5V
7.5V
12V
RATED CURRENT
8A
8A
5.4A
3.7A
CURRENT RANGE
0 ~ 10.7A
0 ~ 10.5A
0 ~ 7A
0 ~ 4.4A
RATED POWER
26.4W
40W
40.5W
44.4W
OUTPUT POWER
Rated output power for convection; 52W (+3.3V : 35W) with 18 CFM min.
RIPPLE & NOISE
80mVp-p
100mVp-p
100mVp-p
100mVp-p
VOLTAGE ADJ. RANGE
3.14 ~ 3.63V
4.75 ~ 5.5V
7.13 ~ 8.25V
11.4 ~ 13.2V
VOLTAGE TOLERANCE
3.0%
3.0%
3.0%
2.0%
LINE REGULATION
1.0%
1.0%
1.0%
1.0%
LOAD REGULATION
3.0%
3.0%
3.0%
2.0%
SETUP, RISE TIME
800ms, 30ms at full load
HOLD UP TIME
60ms at full load
INPUT
VOLTAGE RANGE
90 ~ 264VAC 127 ~370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY
69%
74%
75%
76%
AC CURRENT
0.8A/115VAC 0.56A/230VAC
INRUSH CURRENT
COLD START 15A/115VAC 30A/230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC
MODEL
PS-45-13.5
PS-45-15
PS-45-24
PS-45-27
PS-45-48
OUTPUT
DC VOLTAGE
13.5V
15V
24V
27V
48V
RATED CURRENT
3.3A
3A
1.9A
1.7A
1A
CURRENT RANGE
0 ~ 3.9A
0 ~ 3.5A
0 ~ 2.2A
0 ~ 1.95A
0 ~ 1.1A
RATED POWER
44.6W
45W
45.6W
45.9W
48W
OUTPUT POWER
Rated output power for convection; 52W (+3.3V : 35W) with 18 CFM min.
