MODEL
|

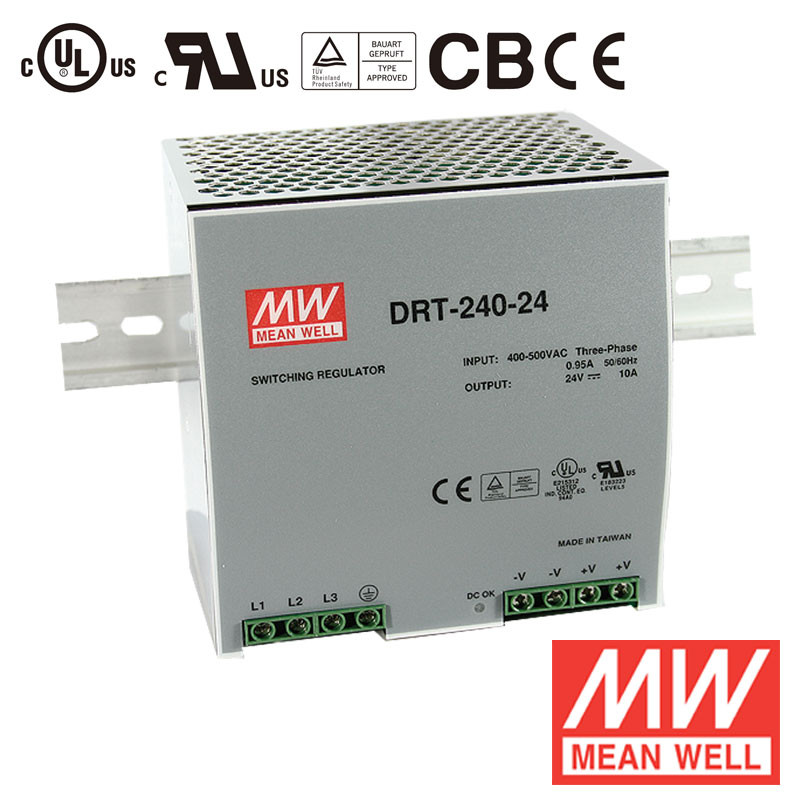

DRT-240-24
|
DRT-240-48
|
|
OUTPUT
|
DC VOLTAGE
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 10A
|
0 ~ 5A
|
|
RATED CURRENT
|
10A
|
5A
|
|
RATED POWER
|
240W
|
240W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
80mVp-p
|
|
VOLTAGE ADJ. RANGE
|
24 ~ 28V
|
48 ~ 55V
|
|
VOLTAGE TOLERANCE
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
0.5%
|
|
SETUP, RISE
HOLED UP TIME (TYP)
|
1200ms, 40ms, 20ms/400VAC 800ms, 40ms, 40ms/500VAC at full load
|
|
INPUT
|
VOLTAGE RANGE NOTE.5
|
Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
POWER FACTOR
|
0.7
|
|
EFFICIENCY (Typ.)
|
89%
|
89%
|
|
AC CURRENT (Typ.)
|
0.95A/400VAC 0.75A/500VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A
|
|
LEAKAGE CURRENT
|
<3.5mA / 530VAC
|
|
PROTECTION
|
OVER LOAD
|
105 ~ 150% rated output power
|
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed
|
|
SHORT CIRCUIT
|
|
|
OVER VOLTAGE
|
30 ~ 36V
|
59 ~ 66V
|
|
Protection type : Shut down o/p voltage, re-power on to recover
|
|
OVER TEMPERATURE
|
100oC �5 (TSW) detect on heatsink of power switch
|
|
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-20 ~ +70oC (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-40 ~ +85oC , 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/oC (0 ~ 50oC )
|
|
VIBRATION
|
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
|
|
SAFETY &EMC
|
SAFETY STANDARDS
|
UL508, UL60950-1, TUV EN60950-1 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55011 (CISPR11), EN55022 (CISPR22), EN61204-3 Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
|
|
OTHERS
|
MTBF
|
114.6Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
125.5*125.2*100mm (W*H*D)
|
|
PACKING
|
1.3Kg; 12pcs/16.6Kg/1.29CUFT
|
|
NOTE
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
5. Dual phase operation: derating of 20% is required.
|
