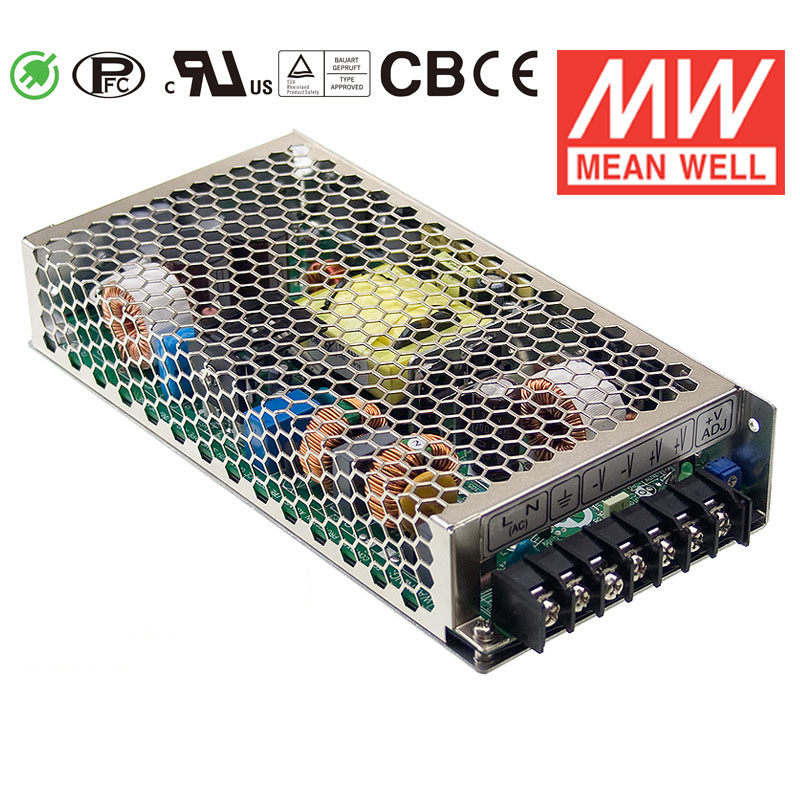

200W Single Output with PFC Function HRP-200 series
Features:
* Universal AC input / Full range
* Built-in active PFC function, PF>0.95
* High efficiency up to 89%
* Withstand 300VAC surge input for 5 seconds
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* Built-in constant current limiting circuit
* 1U low profile 38mm
* Built-in remote sense function
* 5 years warranty
Specifications:
|
MODEL
|
HRP-200-3.3
|
HRP-200-5
|
HRP-200-7.5
|
HRP-200-12
|
HRP-200-15
|
HRP-200-24
|
HRP-200-36
|
HRP-200-48
|
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
7.5V
|
12V
|
15V
|
24V
|
36V
|
48V
|
|
CURRENT RANGE
|
0 ~ 40A
|
0 ~ 35A
|
0 ~ 26.7A
|
0 ~ 16.7A
|
0 ~ 13.4A
|
0 ~ 8.4A
|
0 ~ 5.7A
|
0 ~ 4.3A
|
|
RATED CURRENT
|
40A
|
35A
|
26.7A
|
16.7A
|
13.4A
|
8.4A
|
5.7A
|
4.3A
|
|
RATED POWER
|
132W
|
175W
|
200.3W
|
200.4W
|
201W
|
201.6W
|
205.2W
|
206.4W
|
|
RIPPLE & NOISE
|
80mVp-p
|
90mVp-p
|
100mVp-p
|
120mVp-p
|
150mVp-p
|
150mVp-p
|
250mVp-p
|
250mVp-p
|
|
VOLTAGE ADJ. RANGE
|
2.8 ~ 3.8V
|
4.3 ~ 5.8V
|
6.8 ~ 9V
|
10.2 ~ 13.8V
|
13.5 ~ 18V
|
21.6 ~ 28.8V
|
28.8 ~ 39.6V
|
40.8 ~ 55.2V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
2.0%
|
2.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
0.5%
|
0.5%
|
0.3%
|
0.3%
|
0.2%
|
0.2%
|
0.2%
|
|
LOAD REGULATION
|
1.5%
|
1.0%
|
1.0%
|
0.5%
|
0.5%
|
0.5%
|
0.5%
|
0.5%
|
|
SETUP RISE TIME
|
1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
|
|
HOLD TIME
|
16ms/230VAC 16ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
POWER FACTOR
|
PF>0.95/230VAC PF>0.99, /115VAC at full load
|
|
EFFICIENCY
|
80%
|
84%
|
86%
|
88%
|
88%
|
88%
|
89%
|
89%
|
|
AC CURRENT
|
2.2A/115VAC 1.1A/230VAC
|
|
INRUSH CURRENT
|
35A/115VAC 70A/230VAC
|
|
LEAKAGE CURRENT
|
<1.2mA / 240VAC
|
|
OTHERS
|
MTBF
|
209.4K hrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
199*98*38mm (L*W*H)
|
|
PACKING
|
0.77Kg; 18pcs/14.9Kg/0.81CUFT
|
