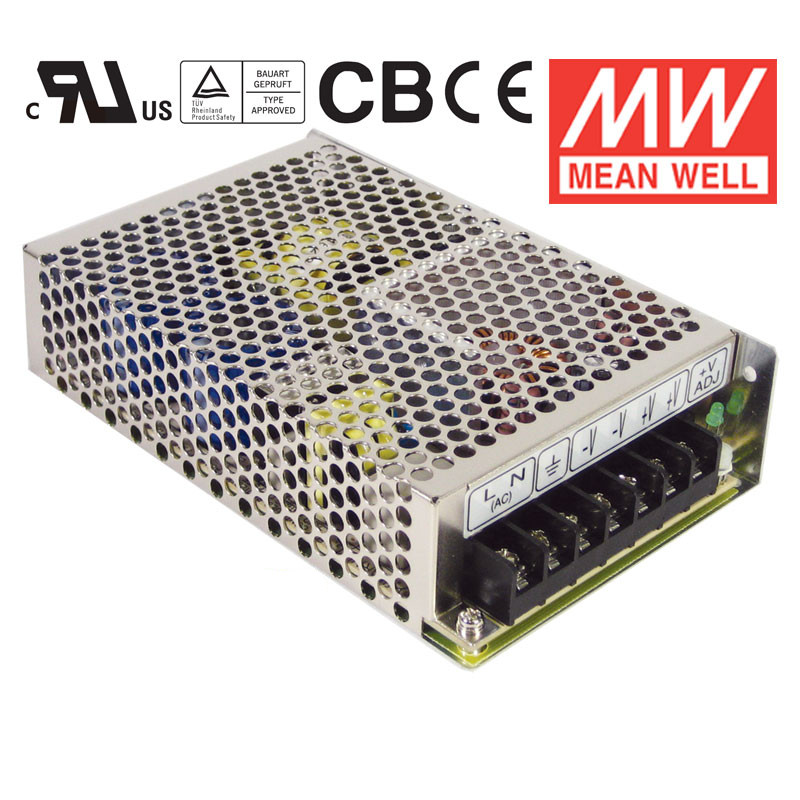

85W Dual Output Switching Power Supply RID-85 series
Features:
* Isolated output & GND for CH1,CH2
* Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105long life electrolytic capacitors
* Withstand 300VAC surge input for 5 second
* High operating temperature up to 70
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
|
MODEL
|
RD-85A
|
RD-85B
|
|
OUTPUT
|
OUTPUT NUMBER
|
CH1
|
CH2
|
CH1
|
CH2
|
|
DC VOLTAGE
|
5V
|
12V
|
5V
|
24V
|
|
CURRENT RANGE
|
2 ~ 10A
|
0.3 ~ 5A
|
2 ~ 10A
|
0.3 ~ 2.5A
|
|
RATED CURRENT
|
8A
|
4A
|
8A
|
2A
|
|
RATED POWER
|
88W
|
88W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
80mVp-p
|
120mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1 : 4.75 ~ 5.5V
|
CH1 : 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
5.0%
|
2.0%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
0.5%
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
1.0%
|
3.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
|
|
HOLD UP TIME
|
100ms/230VAC 18ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
78%
|
80%
|
|
AC CURRENT
|
2.5A/115VAC 1.5A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
PROTECTION
|
OVER LOAD
|
110 ~ 150% rated output power
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
CH1: 5.75 ~ 6.75V
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-25 ~ +70oC(Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-40 ~ +85oC, 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/oC (0 ~ 50oC ) on +5V output
|
|
VIBRATION
|
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
|
|
SAFETY &EMC
|
SAFETY STANDARDS
|
UL60950-1, TUV EN60950-1 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55022 (CISPR22) Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A
|
|
OTHERS
|
MTBF
|
239.4Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
159*97*38mm (L*W*H)
|
|
PACKING
|
0.6Kg; 24pcs/15.4Kg/0.7CUFT
|
