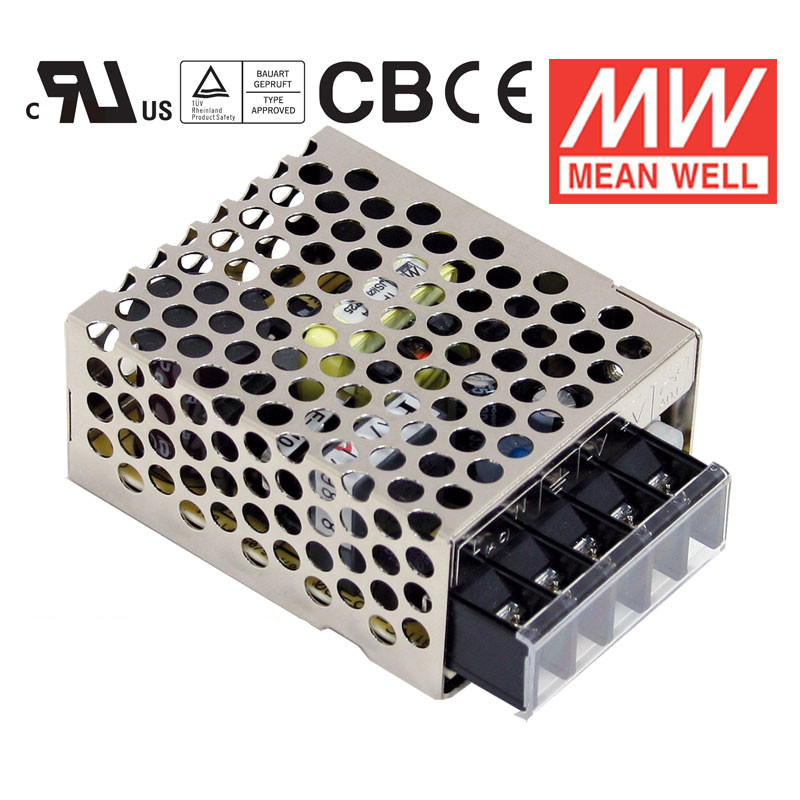

15W Single Output Switching Power Supply RS-15 series
Features:
* Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* No load power consumption<0.5W
* All using 105oC long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 70oC
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
|
MODEL
|
RS-15-3.3
|
RS-15-5
|
RS-15-12
|
RS-15-15
|
RS-15-24
|
RS-15-48
|
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
12V
|
15V
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 3A
|
0 ~ 3A
|
0 ~ 1.3A
|
0 ~ 1A
|
0 ~ 0.625A
|
0 ~ 0.313A
|
|
RATED CURRENT
|
3A
|
3A
|
1.3A
|
1A
|
0.625A
|
0.313A
|
|
RATED POWER
|
9.9W
|
15W
|
15.6W
|
15W
|
15W
|
15W
|
|
RIPPLE & NOISE
|
80mVp-p
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
200mVp-p
|
200mVp-p
|
|
VOLTAGE ADJ. RANGE
|
2.9 ~ 3.6V
|
4.75 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5 ~ 16.5V
|
22 ~ 27.6V
|
43.2 ~ 52.8V
|
|
VOLTAGE TOLERANCE
|
3.0%
|
2.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
2.0%
|
1.5%
|
0.5%
|
0.5%
|
0.5%
|
0.5%
|
|
SETUP, RISE TIME
|
1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
|
|
HOLD UP TIME
|
70ms/230VAC 15ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
72%
|
77%
|
81%
|
81%
|
82%
|
82%
|
|
AC CURRENT
|
0.35A/115VAC 0.25A/230VAC
|
|
INRUSH CURRENT
|
COLD START 65A / 230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
PROTECTION
|
OVER LOAD
|
Above 105% rated output power
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
3.8 ~ 4.45V
|
5.75 ~ 6.75V
|
13.8 ~ 16.2V
|
17.25 ~ 20.25V
|
28.4 ~ 32.4V
|
55.2 ~ 64.8V
|
|
Protection type : Shut off o/p voltage, clamping by zener diode
|
|
OVER TEMPERATURE
|
U1 Tj 140 typically (U1) detect on main control IC
|
|
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
|
|
OTHERS
|
MTBF
|
1608.8Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
62.5*51*28mm (L*W*H)
|
|
PACKING
|
0.13Kg; 108pcs/15Kg/0.71CUFT
|
