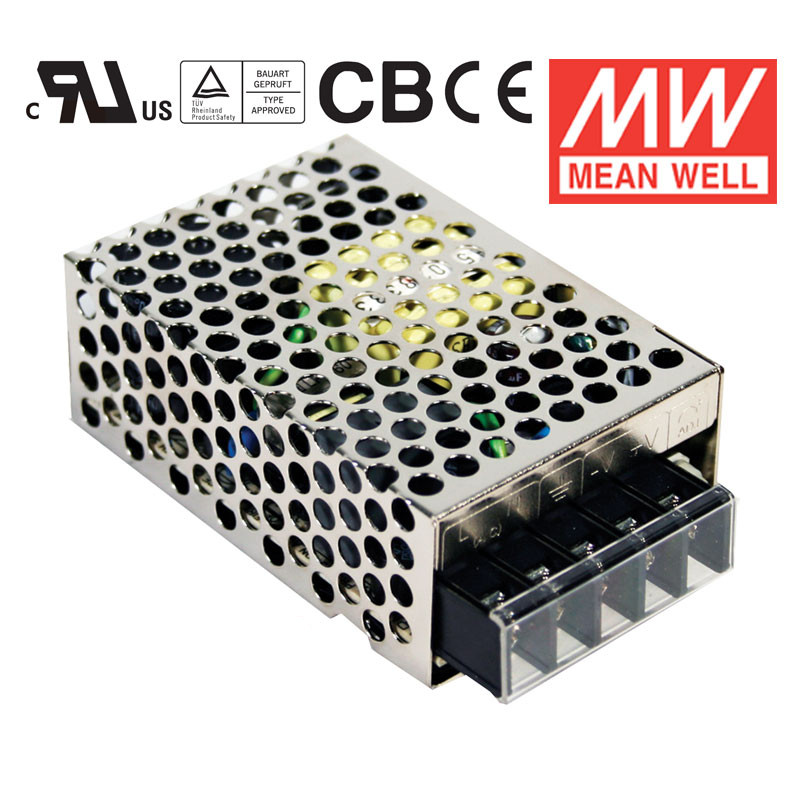

25W Single Output Switching Power Supply RS-25 series
Features:
* Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105oClong life electrolytic capacitors
* Withstand 300VAC surge input for 5 second
* High operating temperature up to 70oC
* Withstand 5G vibration test
* No load power consumption<0.5W
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
|
MODEL
|
RS-25-3.3
|
RS-25-5
|
RS-25-12
|
RS-25-15
|
RS-25-24
|
RS-25-48
|
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
12V
|
15V
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 6A
|
0 ~ 5A
|
0 ~ 2.1A
|
0 ~ 1.7A
|
0 ~ 1.1A
|
0~ 0.57A
|
|
RATED CURRENT
|
6A
|
5A
|
2.1A
|
1.7A
|
1.1A
|
0.57A
|
|
RATED POWER
|
19.8W
|
25W
|
25.2W
|
25.5W
|
26.4W
|
27.36W
|
|
RIPPLE & NOISE
|
80mVp-p
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
120mVp-p
|
200mVp-p
|
|
VOLTAGE ADJ.
|
2.85 ~ 3.6V
|
4.75 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5 ~ 16.5V
|
22 ~ 27.6V
|
42 ~ 54V
|
|
VOLTAGE TOLERANCE
|
3.0%
|
2.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
2.0%
|
1.0%
|
0.5%
|
0.5%
|
0.5%
|
0.5%
|
|
SETUP RISE TIME
|
1800ms, 23ms/230VAC 4000ms, 30ms/115VAC at full load
|
|
HOLD UP TIME
|
80ms/230VAC 14ms/115VAC at full load
|
|
INPUT
|
VOLTAGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
73.5%
|
78.5%
|
81.5%
|
83.5%
|
86%
|
85%
|
|
AC CURRENT
|
0.7A/115VAC 0.4A/230VAC
|
|
INRUSH CURRENT
|
COLD START 30A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
309.7Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
78*51*28mm (L*W*H)
|
|
PACKING
|
0.2Kg; 60pcs/13Kg/0.46CUFT
|
