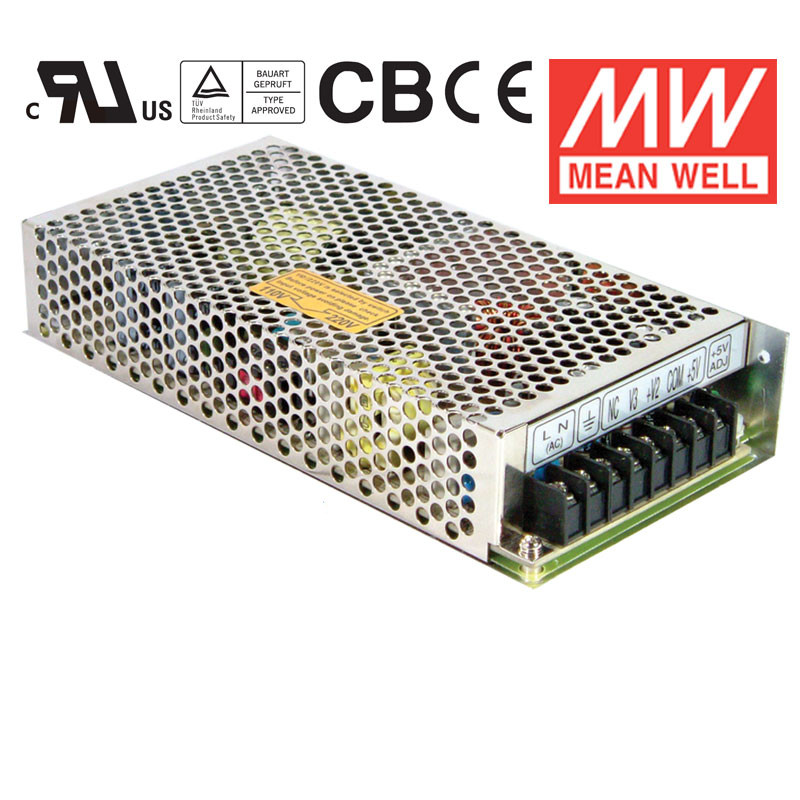

125W Quad Output Switching Power Supply RQ -125 series
Features:
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105oClong life electrolytic capacitors
* Withstand 300VAC surge input for 5 second
* High operating temperature up to 70oC
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
|
MODEL
|
RQ-125B
|
|
OUTPUT
|
OUT PUTNUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
12V
|
-5V
|
-12V
|
|
CURRENT RANGE
|
2 ~ 12A
|
0.5 ~ 4.5A
|
0.1 ~ 1A
|
0 ~ 1A
|
|
RATED CURRENT
|
11A
|
4.5A
|
1A
|
0.5A
|
|
RATED POWER
|
120W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
80mVp-p
|
80mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
+8,-3%
|
+6,-10%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
1.0%
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
6.0%
|
2.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC1200ms 30ms/115VAC at full load
|
|
HOLD TIME
|
25ms/230VAC 30ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
79%
|
|
AC CURRENT
|
3A/115VAC 2A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/115VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
203.1Khrs min. MIL-HDBK-217F
|
|
DIMENSION
|
199*98*38mm (L*W*H)
|
|
PACKING
|
0.7Kg; 20pcs/14Kg/0.8CUFT
|
|
MODEL
|
RQ-125C
|
|
OUTPUT
|
OUT PUTNUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
15V
|
-5V
|
-15V
|
|
CURRENT RANGE
|
2 ~ 12A
|
0.5 ~ 4A
|
0.1 ~ 1A
|
0 ~ 1A
|
|
RATED CURRENT
|
10A
|
4A
|
1A
|
0.5A
|
|
RATED POWER
|
122.5W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
80mVp-p
|
80mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
+8,-3%
|
+6,-10%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
1.0%
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
6.0%
|
2.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC1200ms 30ms/115VAC at full load
|
|
HOLD TIME
|
25ms/230VAC 30ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
80%
|
|
AC CURRENT
|
3A/115VAC 2A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/115VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
203.1Khrs min. MIL-HDBK-217F
|
|
DIMENSION
|
199*98*38mm (L*W*H)
|
|
PACKING
|
0.7Kg; 20pcs/14Kg/0.8CUFT
|
|
MODEL
|
RQ-125D
|
|
OUTPUT
|
OUT PUTNUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
12V
|
24V
|
-12V
|
|
CURRENT RANGE
|
2 ~ 12A
|
0.5 ~ 4A
|
0.1 ~ 2.5A
|
0 ~ 1A
|
|
RATED CURRENT
|
8A
|
2.5A
|
2A
|
0.5A
|
|
RATED POWER
|
124W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
120mVp-p
|
150mVp-p
|
80mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
+8,-3%
|
8.0%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
1.0%
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
3.0%
|
5.0%
|
2.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC1200ms 30ms/115VAC at full load
|
|
HOLD TIME
|
25ms/230VAC 30ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
82%
|
|
AC CURRENT
|
3A/115VAC 2A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/115VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
203.1Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
199*98*38mm (L*W*H)
|
|
PACKING
|
0.7Kg; 20pcs/14Kg/0.8CUFT
|
