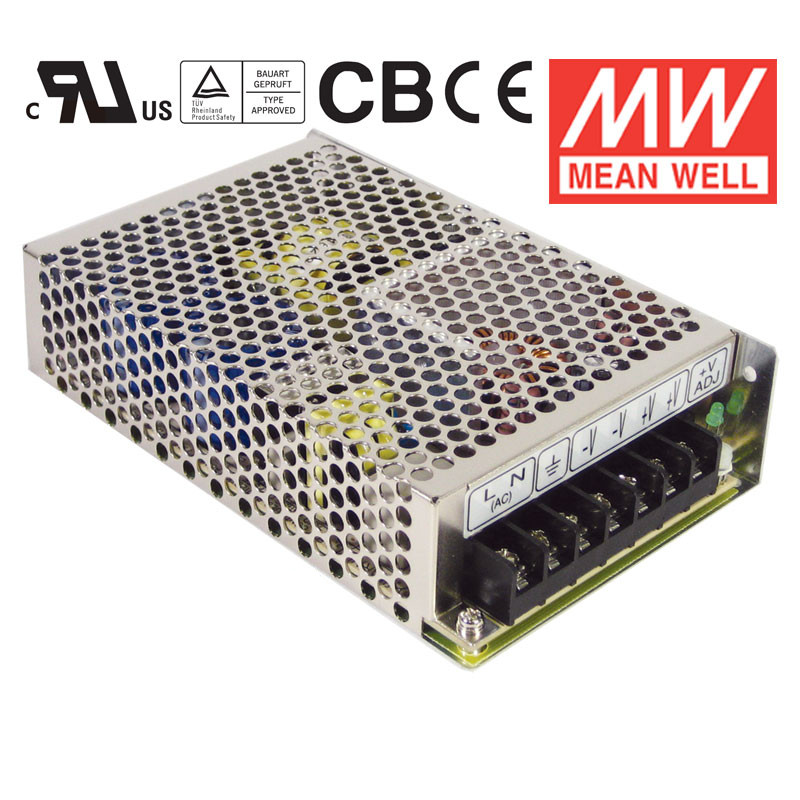

100W Single Output Switching Power Supply RS-100 series
Features:
* Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* All using 105long life electrolytic capacitors
* Withstand 300VAC surge input for 5 second
* High operating temperature up to 70oC
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
|
MODEL
|
RS-100-3.3
|
RS-100-5
|
RS-100-12
|
RS-100-15
|
RS-100-24
|
RS-100-48
|
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
12V
|
15V
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 20A
|
0 ~ 16A
|
0 ~ 8.5A
|
0 ~ 7A
|
0 ~ 4.5A
|
0 ~ 2.3A
|
|
RATED CURRENT
|
20A
|
16A
|
8.5A
|
7A
|
4.5A
|
2.3A
|
|
RATED POWER
|
66W
|
80W
|
102W
|
105W
|
108W
|
110.4W
|
|
RIPPLE & NOISE
|
80mVp-p
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
120mVp-p
|
200mVp-p
|
|
VOLTAGE ADJ. RANGE
|
3.2V ~ 3.5V
|
4.75 ~ 5.5V
|
11.4 ~ 13.2V
|
14.25 ~ 16.5V
|
22.8 ~ 26.4V
|
45.6 ~ 52.8V
|
|
VOLTAGE TOLERANCE
|
3.0%
|
2.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
2.0%
|
1.0%
|
0.5%
|
0.5%
|
0.5%
|
0.5%
|
|
SETUP RISE TIME
|
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
|
|
HOLD UP TIME
|
100ms/230VAC 18ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
74%
|
77%
|
81%
|
82%
|
84%
|
84%
|
|
AC CURRENT
|
2.5A/115VAC 1.5A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
260.8Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
159*97*38mm (L*W*H)
|
|
PACKING
|
0.6Kg; 24pcs/15.4Kg/0.7CUFT
|
