MPT-120

Product:
MPT-120
Model Number:
Description:

Learn more about products detailed description, pricing and service, Please send mail to us!

sales@showlandpower.com

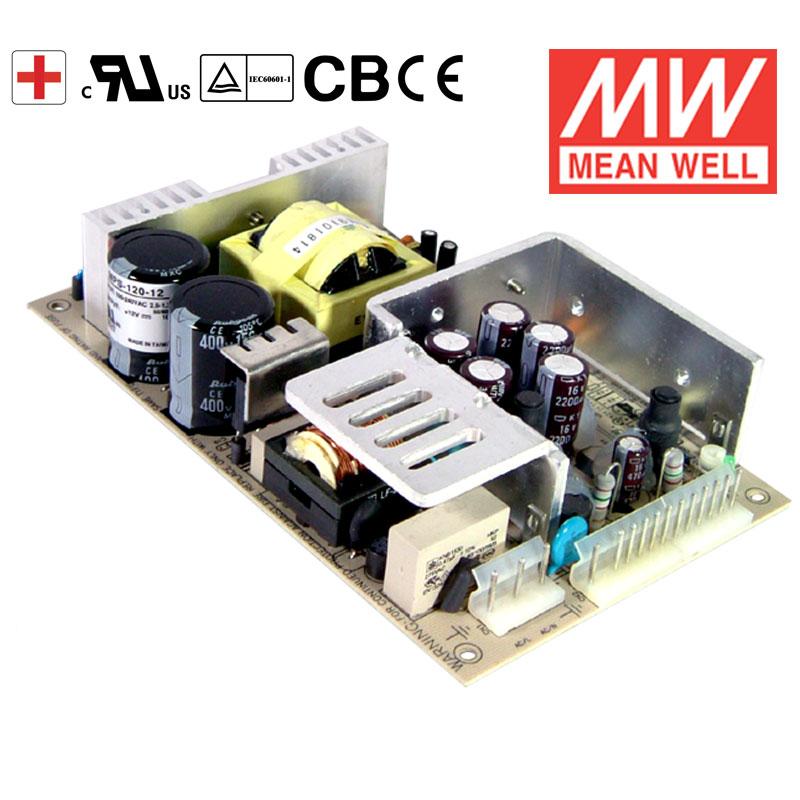

1~4 Output Medical Type 120W Medical MPT-120 Series

Features:
* Universal AC input / Full range
* Low leakage current <180 A
* Protections: Short circuit / Overload / Over voltage
* UL60601-1 medical safety approved
* With power good and fail signal output (Optional)
* 100% full load burn-in test
* Fixed switching frequency at 45KHz
* 3 years warranty

Specifications:

Model	Output	Tol.	R&N	Effi.	Max.
MPT-120A	5V, 2.0~12A 12V, 0.4~5.8A -5V, 0.0~1A	±2% 8%.6% ±5%	80mV 120mV 80mV	72%	111W
MPT-120B	5V, 2.0~12A 12V, 0.4~5.3A -12V, 0.0~1A	±2% ±6% ±5%	80mV 120mV 80mV	73%	110W
MPT-120C	5V, 2~11A 15V, 0.4~4.4A -15V, 0.0~1A	±2% 6%-7% ±5%	80mV 150mV 80mV	72%	119W
MPT-120D	5V, 2.0~12A 24V, 0.4~2.6A 12V, 0.0~1A	±2% 8%,-6% ±5%	80mV 300mV 120mV	74%	110W

Universal AC input/Full range

medical safety approved

protection:Short current ,Overload ,Overvoltage/OTP

AC input voltage range 90~264VAC; 127~370VDC

AC inrush current (typ.) Cold start, 35A at 115Vac, 60A at 230Vac

DC adjustment range -5~+10% rated output voltage

Overload protection 110~160% hiccup mode, auto recovery

Over voltage protection 115%~140% rated output voltage

Over temp. protection U1, Tj:140°C, hiccup mode, auto-recovery

Leakage current Less than 180µA at 264Vac

Setup, rise, hold time (typ.) 1000ms, 20ms, 16ms at full load and 230VAC

Withstand voltage I/P - O/P: 4kVac, I/P - FG: 1.5kVac, 1 minute

Working temperature -20°C ~ +70°C (refer to derating curve in Detailed Specifications)

Safety standards UL2601-1, TUV EN60601-1, IEC601-1 approved,design refer to UL60950-1, TUV EN60950-1

EMC standards EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11EN61000-3-2,3, EN60601-1-2, ENV50204, EN61000-6-2

Connection 30,8P@2/3.96MM PITCH,

Case dimension (L×W×H) 177.8x107.95x35.5mm or 7"x4.25"x1.4"

Packing 0.55Kg; 24pcs/14.5Kg/1.04CUFT
