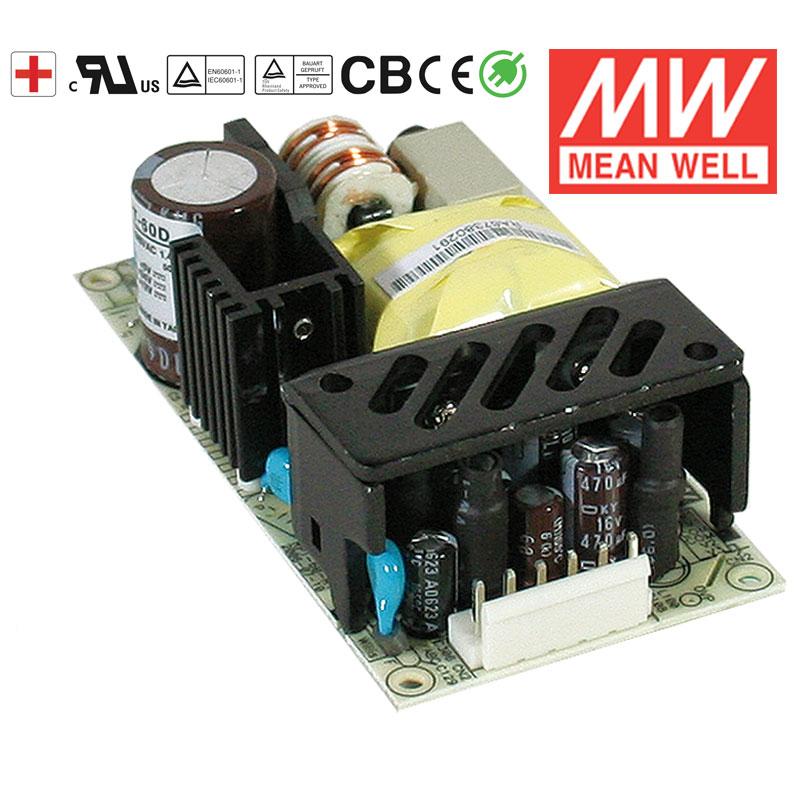

60W Triple Output Medical Type RPT- 60 series

Features:

* 4"x2" miniature size

* Universal AC input / Full range

* Low leakage current<200uA

* Protections: Short circuit / Overload / Over voltage

* Cooling by free air convection

* UL60601-1/IEC60601-1/EN60601-1 medical safety approved

* UL60950-1/IEC60950-1/EN60950-1 ITE safety approved

* Fixed switch frequency at 100KHz

* 3 years warranty

Specifications:

MODEL

RPT-60A

OUTPUT

CHANNEL

CH1

CH2

CH3

DC VOLTAGE

5V

12V

-5V

RATED CURRENT

4A

2A

0.5A

CURRENT RANGE

0.5 ~ 4.4A

0.1 ~ 2.2A

0.1 ~ 0.55A

RATED POWER (max.)

46.5W

PEAK LOAD(10sec.)  Note.4

51.15W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

80mVp-p

VOLTAGE ADJ. RANGE

2.97 ~ 3.63V

4.5 ~ 5.5V

6.75 ~ 8.25V

VOLTAGE TOLERANCE   Note.3

+3,-2%

6.0%

+9,-8%

LINE REGULATION

0.5%

1.0%

1.0%

LOAD REGULATION Note.3

1.5%

2.0%

+5,-7%

SETUP, RISE TIME

200ms, 15ms/230VAC    200ms, 15ms/115VAC at full load

HOLD UP TIME

70ms/230VAC     15ms/115VAC at full load

INPUT

VOLTAGE RANGE

90 ~ 264VAC     127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

77%

AC CURRENT (Typ.)

1.1A/115VAC    0.7A/230VAC

INRUSH CURRENT (Typ.)

COLD START 60A/230VAC     30A/115VAC

LEAKAGE CURRENT

For earth <200uA/264VAC, For patient <100uA/264VAC

MODEL

RPT-60B

OUTPUT

CHANNEL

CH1

CH2

CH3

DC VOLTAGE

5V

12V

-12V

RATED CURRENT

4A

2A

0.5A

CURRENT RANGE

0.5 ~ 4.4A

0.1 ~ 2.2A

0.1 ~ 0.55A

RATED POWER (max.)

50W

PEAK LOAD(10sec.)  Note.4

55W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

10.8 ~ 13.2V

12.2 ~ 14.85V

13.5 ~ 16.5V

VOLTAGE TOLERANCE   Note.3

+3,-2%

6.0%

+10,-6%

LINE REGULATION

0.5%

1.0%

2.0%

LOAD REGULATION Note.3

1.5%

2.0%

5.0%

SETUP, RISE TIME

200ms, 15ms/230VAC    200ms, 15ms/115VAC at full load

HOLD UP TIME

70ms/230VAC     15ms/115VAC at full load

INPUT

VOLTAGE RANGE

90 ~ 264VAC     127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

78%

AC CURRENT (Typ.)

1.1A/115VAC    0.7A/230VAC

INRUSH CURRENT (Typ.)

COLD START 60A/230VAC     30A/115VAC

LEAKAGE CURRENT

For earth <200uA/264VAC, For patient <100uA/264VAC



MODEL

RPT-60C

OUTPUT

CHANNEL

CH1

CH2

CH3

DC VOLTAGE

5V

15V

-15V

RATED CURRENT

4A

1.5A

0.5A

CURRENT RANGE

0.5 ~ 4.4A

0.1 ~ 1.65A

0.1 ~ 0.55A

RATED POWER (max.)

50W

PEAK LOAD(10sec.)  Note.4

55W

RIPPLE & NOISE (max.) Note.2

80mVp-p

100mVp-p

150mVp-p

VOLTAGE ADJ. RANGE

21.6 ~ 26.4V

24.3 ~ 29.7V

43.2 ~ 52.8V

VOLTAGE TOLERANCE   Note.3

+3,-2%

6.0%

8.0%

LINE REGULATION

0.5%

2.0%

2.0%

LOAD REGULATION Note.3

1.5%

3.0%

   4.0%

SETUP, RISE TIME

200ms, 15ms/230VAC    200ms, 15ms/115VAC at full load

HOL, D UP TIME

70ms/230VAC     15ms/115VAC at full load

INPUT

VOLTAGE RANGE

90 ~ 264VAC     127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

79%

AC CURRENT (Typ.)

1.1A/115VAC    0.7A/230VAC

INRUSH CURRENT (Typ.)

COLD START 60A/230VAC     30A/115VAC

LEAKAGE CURRENT

For earth <200uA/264VAC, For patient <100uA/264VAC
