MPQ-120

Product:
MPQ-120
Model Number:
Description:

Learn more about products detailed description, pricing and service, Please send mail to us!

sales@showlandpower.com

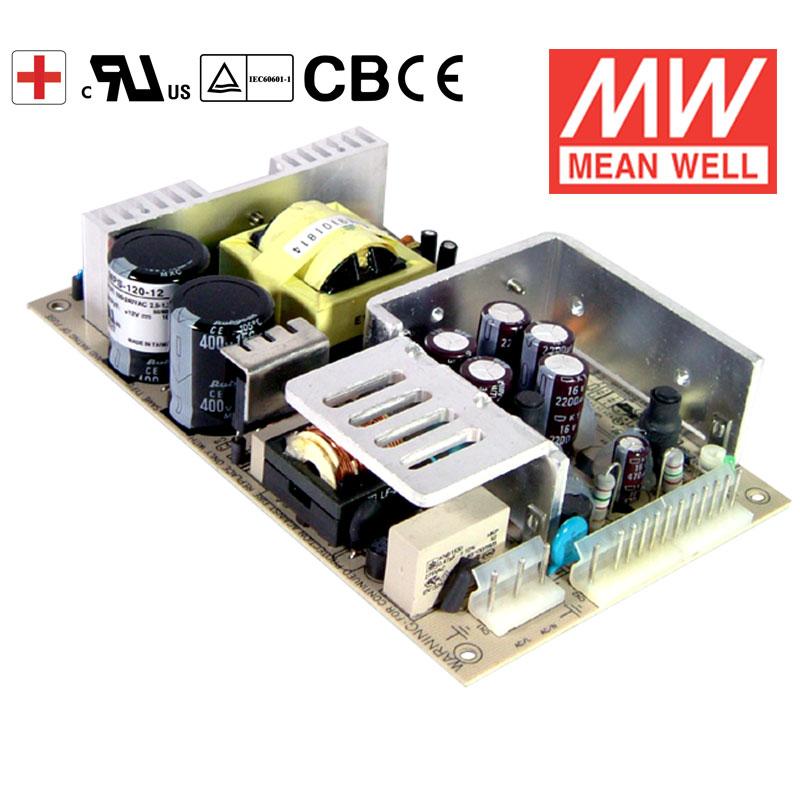

1~4 Output Medical Type 120W Medical MPQ-120 series

Features:
* Universal AC input / Full range
* Low leakage current <18 A
* Protections: Short circuit / Overload / Over voltage
* UL60601-1 medical safety approved
* With power good and fail signal output (Optional)
* 100% full load burn-in test
* Fixed switching frequency at 45KHz
* 3 years warranty

Specifications:

MODEL

OUTPUT

VOLTAGE

RATED

CURRENT

OUTPUT CURRENT

RIPPLE & NOISE

(Max.)

(Note 2)

VOLTAGE

TOLERANCE

(Note 3)

LINE

REGULATION

LOAD

REGULATION

EFFICIENCY

MINIMUM

LOAD

CONVECTION

(max.)

WITH FAN

(25CFM)

(

PEAK LOAD

WITH 25CFM FAN

Note 4)

MPQ-120B

5V

10A

2A

7.3A

10A

11A

80mVp-p

±2.0%

±0.5%

±0.5%

71%

12V

4.2A

0.5A

3.1A

4.2A

5A

120mVp-p

±6.0%

±1.5%

±3.5%

-5V

0.6A

0A

0.4A

0.6A

1A

80mVp-p

±5.0%

±0.5%

±1.0%

-12V

0.6A

0A

0.4A

0.6A

1A

80mVp-p

±5.0%

±0.5%

±1.0%

MPQ-120C

5V

10A

2A

7.3A

10A

11A

80mVp-p

±2.0%

±0.5%

±0.5%

71%

15V

3.2A

0.5A

2.4A

3.2A

3.8A

150mVp-p

+6,-7%

±2.0%

±3.5%

-5V

0.6A

0A

0.4A

0.6A

1A

80mVp-p

±5.0%

±0.5%

±1.0%

-15V

0.6A

0A

0.4A

0.6A

1A

80mVp-p

±5.0%

±0.5%

±1.0%

MPQ-120D

5V

10A

2A

7A

10A

11A

80mVp-p

±2.0%

±0.5%

±0.5%

74%

12V

1A

0.2A

0.7A

1A

1.1A

150mVp-p

+8,-6%

±2.0%

±3.5%

24V

2.1A

0.3A

1.4A

2.1A

2.3A

300mVp-p

±8.0%

±2.0%

±3.5%

-12V

0.6A

0A

0.3A

0.6A

1A

80mVp-p

±5.0%

±0.5%

±1.0%

MPQ-120E

5V

10A

2A

7.3A

10A

11A

80mVp-p

±2.0%

±0.5%

±0.5%

73%

12V

3A

0.5A

2.3A

3A

3.3A

120mVp-p

±6.0%

±2.0%

±3.0%

15V

0.6A

0A

0.4A

0.6A

1A

80mVp-p

±8.0%

±2.0%

±3.0%

24V

0.6A

0A

0.4A

0.6A

1A

80mVp-p

±5.0%

±0.5%

±1.0%
