MODEL
|

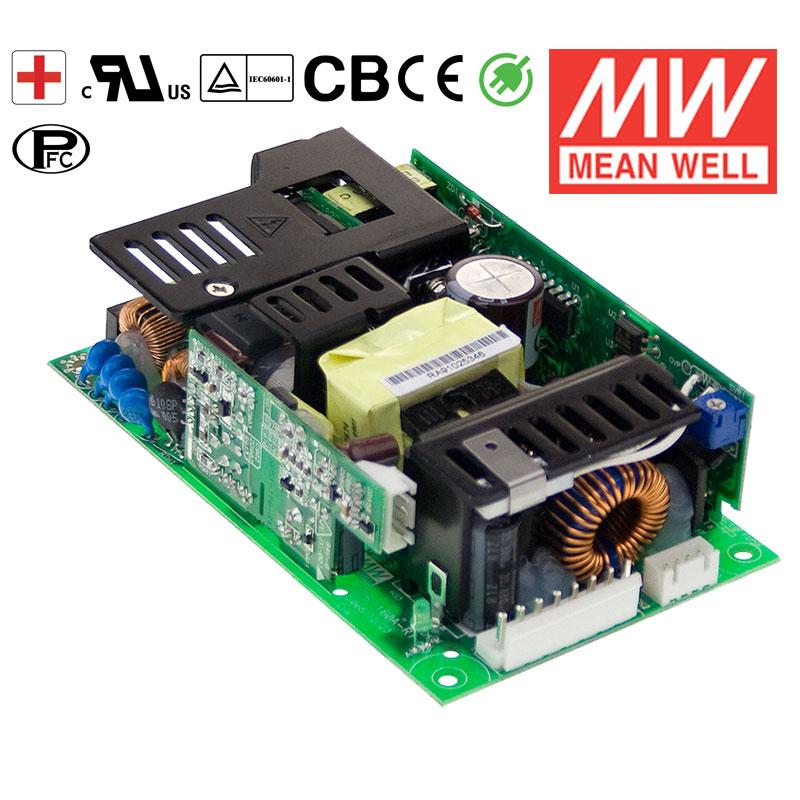

RPD-160B
|
|
OUTPUT
|
CHANNEL
|
CH1
|
CH2
|
|
DC VOLTAGE
|
5V
|
24V
|
|
RATED CURRENT
|
12A
|
3.6A
|
|
CURRENT RANGE
|
1 ~ 6A
|
0.2 ~ 2.8A
|
|
CURRENT RANGE (20.5CFM)
|
1 ~ 12A
|
0.2 ~ 3.6A
|
|
RATED POWER (convection) Note.7
|
100.2W
|
|
RATED POWER (20.5CFM) Note.8
|
150.4W
|
|
RIPPLE & NOISE (max.) Note.2
|
80mVp-p
|
200mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 5 ~ 5.5V
|
|
VOLTAGE TOLERANCE Note.3
|
2.5%
|
6.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
|
LOAD REGULATION Note.3
|
1.5%
|
3.0%
|
|
SETUP, RISE TIME
|
1200ms, 30ms/230VAC 2500ms, 30ms/115VAC at full load
|
|
HOLD UP TIME
|
16ms/230VAC/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
90 ~ 264VAC 127 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
POWER FACTOR (Typ.)
|
PF>0.93/230VAC PF>0.98/115VAC at full load
|
|
EFFICIENCY (Typ.)
|
84%
|
|
AC CURRENT (Typ.)
|
1.7A/115VAC 0.9A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 35A/115VAC 70A/230VAC
|
|
LEAKAGE CURRENT
|
Earth leakage current <200uA / 264VAC, Patient leakage current <100uA/264VAC
|
|
PROTECTION
|
OVER LOAD
|
105 ~ 135% rated output power
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
CH1: 5.75 ~ 6.75V
|
|
Protection type : Shut down o/p voltage, re-power on to recover
|
|
OVER TEMPERATURE
|
105 (TSW1) detect on heatsink of power transistor
|
|
90 (TSW2 ) detect on heatsink of power transistor
|
|
Protection type : (TSW1)Shut down o/p voltage, recovers automatically after temperature goes down
|
|
Protection type : (TSW2)Shut down o/p voltage, re-power on to recover
|
|
FUNCTION
|
5V STANDBY (G model)
|
5VSB : 5V@0.6A without fan, 0.8A with fan 20.5CFM ; tolerance 2%, ripple : 50mVp-p(max.)
|
|
PS-ON INPUT SIGNAL (G model)
|
Power on: PS-ON = "Hi" .or " > 2 ~ 5V" ; Power off: PS-ON = "Low" .or " < 0 ~ 0.5V"
|
|
POWER GOOD / POWER FAIL
|
500ms>PG>10ms PF>1ms
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-20 ~ +70oC (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-40 ~ +85oC , 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/oC (0 ~ 50oC)
|
|
VIBRATION
|
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
|
|
SAFETY &EMC(Note 4)
|
SAFETY STANDARDS
|
UL60601-1, TUV EN60601-1 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:4KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55011(CISPR11),EN55022 (CISPR22) Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, EN60601-1-2, EN61204-3, medical level, criteria A
|
|
MTBF
|
196.3Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
127*76.2*34.6mm (L*W*H)
|
|
PACKING
|
0.33Kg; 36pcs/12.9Kg/0.79CUFT
|
|
NOTE
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. HS1,HS2 & HS3 can not be shorted.
6. Derating may be needed under low input voltages. Please check the derating curve for more details.
7. The rated power includes 5Vsb @ 0.6A.
8. The rated power includes 5Vsb @ 0.8A.
|
