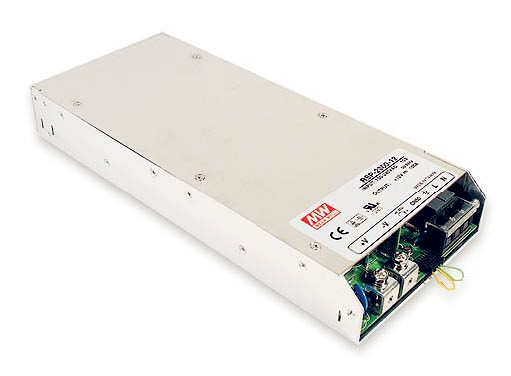

2000W Single Output Power Supply RSP-2000 series

Features:

* Universal AC input / Full range

* AC input active surge current limiting

* Built-in 5V/0.3A,12V/0.8Aauxiliary power

* Built-in active PFC function, PF>0.98

* Protections: Short circuit / Overload / Over voltage / Over temperature

* Output voltage can be trimmed between 20 ~ 110% of the rated output voltage

* Forced air cooling by built-in DC fan

* High power density 21.4w/inch3

* 1U low profile 41mm

* Active current sharing

* DC OK Signal

* Built-in remote ON-OFF control

* Built-in remote sense function

* 3 years warranty

Specifications:

MODEL			RSP-2000-12	RSP-2000-24	RSP-2000-48
OUTPUT	DC VOLTAGE	12V		24V	48V
	CURRENT RANGE	0 ~ 100A		0 ~ 80A	0 ~ 42A
	RATED CURRENT	100A		80A	42A
	RATED POWER	1200W		1920W	2016W
	RIPPLE & NOISE (max.)	150mVp-p		200mVp-p	300mVp-p
	VOLTAGE ADJ. RANGE	10.5 ~ 14V		21 ~ 28V	42 ~ 56V
	VOLTAGE TOLERANCE	2.0%		1.0%	1.0%
	LINE REGULATION	0.5%
	LOAD REGULATION	0.5%		0.5%	0.5%
	SETUP, RISE TIME	1500ms, 60ms at full load
	HOLD UP TIME (TYP)	16ms/230VAC 16ms/230VAC at 75% load 10ms/230VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC / 170 ~ 370VAC selected by switch 240 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	86%		90.5%	92%
	AC CURRENT (Typ.)	13A/115VAC 7A/230VAC 16A/115VAC 11A/230VAC
	INRUSH CURRENT (Typ.)	25A/115VAC 50A/230VAC
	LEAKAGE CURRENT	<2.0mA / 240VAC
PROTECTION	OVER LOAD	105 ~ 150% rated output power
		Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	14.7 ~ 17.5V		29.5 ~ 35V	57.6 ~ 67.2V
		Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	85oC 5 (TSW2 ) detect on heatsink of O/P diode; 75oC 5 (TSW1 ) detect on heatsink of power transistor
		Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION	DC OK SIGNAL	The TTL signal out, PSU turn on = 3.3 ~ 5.6V ; PSU turn off = 0 ~ 1V
	OUTPUT VOLTAGE TRIM	Adjustment of output voltage is possible between 20 ~ 110% of rated output
	CURRENT SHARING(CS)	Please refer to function manual
ENVIRONMENT	WORKING TEMP.	-25 ~ +70oC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85oC, 10 ~ 95% RH non-condensing
	TEMP. COEFFICIENT	0.02%/oC (0 ~ 50oC )
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22)
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
OTHERS	MTBF	K hrs min. MIL-HDBK-217F (25 )
	DIMENSION	29512741mm (LWH)
	PACKING	Kg;
