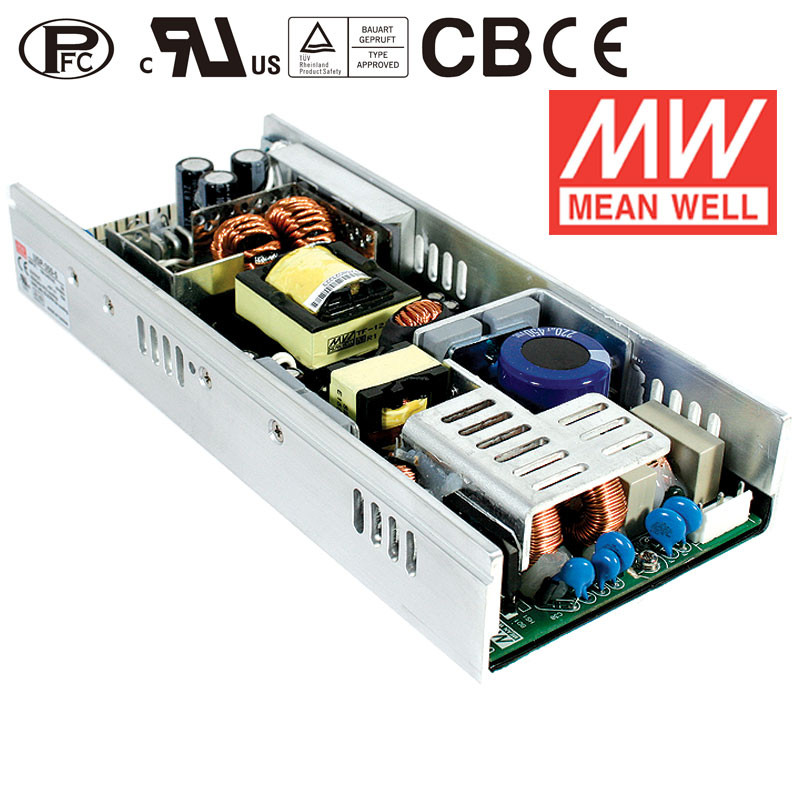

MODEL
|
USP-350-3.3
|
USP-350-5
|
USP-350-12
|
USP-350-15
|
USP-350-24
|
USP-350-48
|
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
12V
|
15V
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 50A
|
0 ~ 50A
|
0 ~ 25A
|
0 ~ 20A
|
0~ 12.5A
|
0~ 6.25A
|
|
RATED CURRENT
|
70A
|
70A
|
29.2A
|
23.4A
|
14.6A
|
7.3A
|
|
RATED POWER(CONVECTION)
|
165W
|
250W
|
300W
|
300W
|
300W
|
300W
|
|
RATED POWER (23.5CFM FAN
|
231W
|
350W
|
350.4W
|
351W
|
350.4W
|
350.4W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
80mVp-p
|
100mVp-p
|
100mVp-p
|
150mVp-p
|
150mVp-p
|
|
VOLTAGE ADJ. RANGE
|
2.97 ~ 3.6V
|
4.5 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5 ~ 16.5V
|
21.6 ~ 26.4V
|
43.2 ~ 52.8V
|
|
VOLTAGE TOLERANCE
NOTE.3
|
2.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
2.0%
|
2.0%
|
1.0%
|
|
SETUP, RISE TIME NOTE.5
|
2000ms, 100ms/230VAC 4000ms, 100ms/115VAC at full load
|
|
HOLD UP TIME (Typ.)
|
12ms/230VAC 16ms/230VAC 16ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
90 ~ 264VAC 127 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
POWER FACTOR (Typ.)
|
|
|
EFFICIENCY (Typ.)
|
78%
|
84%
|
88%
|
88%
|
88%
|
89%
|
|
AC CURRENT (Typ.)
|
4A/115VAC 2A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
22A/115VAC 44A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
PROTECTION
|
OVER LOAD
|
105 ~ 120% rated output power 105 ~ 130% rated output power
|
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
3.7~4.6V
|
5.7 ~ 7V
|
13.5~16.3V
|
17 ~ 21V
|
26.7~32.4V
|
53~64.8V
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
OVER TEMPERATURE
|
80? �5(TSW1) detect on heatsink of power transistor 80 5 (TSW2 ) detect on heatsink of power diode
|
|
Protection type : Shut down o/p voltage with auto-recovery
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10 ~ +65oC (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-40 ~ +85oC , 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/oC(0 ~ 45oC )
|
|
VIBRATION
|
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
|
|
SAFETY &EMC
|
SAFETY STANDARDS
|
UL60950-1, TUV EN60950-1 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55022 (CISPR22) Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2,-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, light industry level, criteria A
|
|
OTHERS
|
MTBF
|
106.3K hrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
235.2*101.5*38mm (L*W*H)
|
|
PACKING
|
1.1Kg; 16pcs/18Kg/0.72CUFT
|
|
NOTE
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
|
