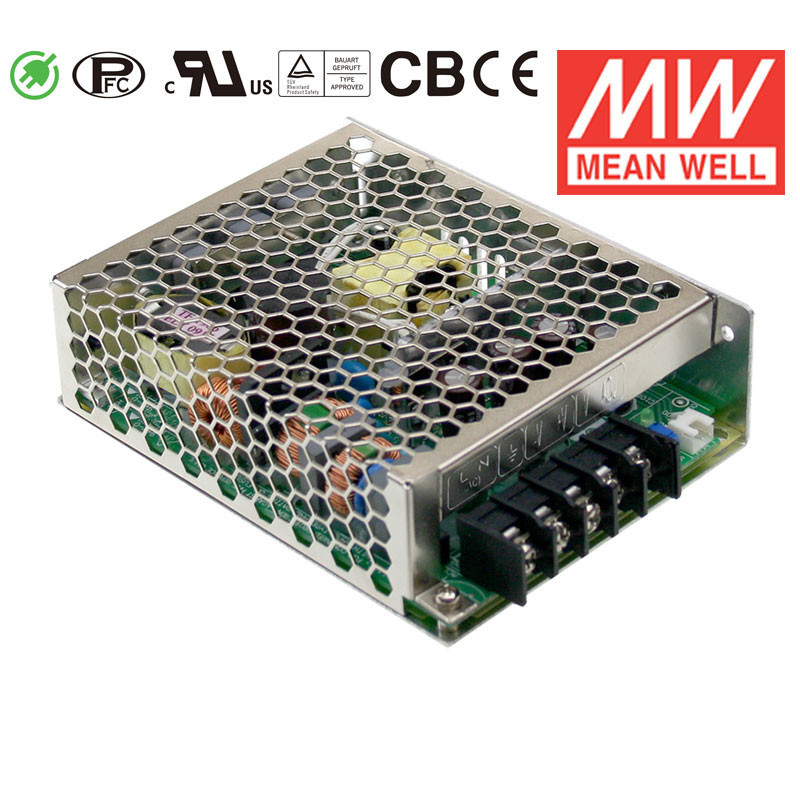

75W Single Output with PFC Function HRP-75 series
Features:
* Universal AC input / Full range
* Built-in active PFC function
* Withstand 300VAC surge input for 5 seconds
* Protections: Short circuit / Overload / Over voltage
* Protections: Over temperature (optional)
* Cooling by free air convection
* 1U low profile 38mm
* Built-in remote ON-OFF control
* No load power consumption<0.5W
* All using 105 long life electrolytic capacitors
* 5 years warranty
Specifications:
|
MODEL
|
HRP-75-3.3
|
HRP-75-5
|
HRP-75-7.5
|
HRP-75-12
|
HRP-75-15
|
HRP-75-24
|
HRP-75-36
|
HRP-75-48
|
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
7.5V
|
12V
|
15V
|
24V
|
36V
|
48V
|
|
CURRENT RANGE
|
0~15A
|
0 ~ 15A
|
0 ~ 10A
|
0 ~ 6.3A
|
0 ~ 5A
|
0 ~ 3.2A
|
0 ~ 2.1A
|
0 ~ 1.6A
|
|
RATED CURRENT
|
15A
|
15A
|
10A
|
6.3A
|
5A
|
3.2A
|
2.1A
|
1.6A
|
|
RATED POWER
|
49.5W
|
75W
|
75W
|
75.6W
|
75W
|
76.8W
|
75.6W
|
76.8W
|
|
RIPPLE & NOISE (max.)
|
80mVp-p
|
80mVp-p
|
100mVp-p
|
120mVp-p
|
150mVp-p
|
150mVp-p
|
200mVp-p
|
240mVp-p
|
|
VOLTAGE ADJ. RANGE
|
3.1 ~ 3.8V
|
4.7 ~ 5.8V
|
7.1 ~ 9V
|
11 ~ 13.8V
|
14.2 ~ 18V
|
21.6 ~ 28.8V
|
32 ~ 39.6V
|
45 ~ 55.2V
|
|
VOLTAGE TOLERANCE
|
2.5%
|
2.5%
|
2.5%
|
1.5%
|
1.5%
|
1.5%
|
1.5%
|
1.5%
|
|
LINE REGULATION
|
1.0%
|
1.0%
|
1.0%
|
0.3%
|
0.3%
|
0.2%
|
0.2%
|
0.2%
|
|
LOAD REGULATION
|
2.0%
|
2.0%
|
1.5%
|
1.0%
|
0.5%
|
0.5%
|
0.5%
|
0.5%
|
|
SETUP RISE TIME
|
1800ms, 25ms/230VAC 1800ms, 25ms/115VAC at full load
|
|
HOLD TIME
|
50ms/230VAC 20ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
POWER FACTOR
|
PF>0.9/230VAC PF>0.95/115V, , AC at full load
|
|
EFFICIENCY
|
77%
|
82.5%
|
84%
|
87%
|
88%
|
88.5%
|
89%
|
89%
|
|
AC CURRENT
|
1.2A/115VAC 0.7A/230VAC
|
|
INRUSH CURRENT
|
35A/115VAC 65A/230VAC
|
|
LEAKAGE CURRENT
|
<1mA / 240VAC
|
|
OTHERS
|
MTBF
|
394.8K hrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
129*98*38mm (L*W*H)
|
|
PACKING
|
0.47Kg; 30pcs/ 15Kg/ 0.97CUFT
|
