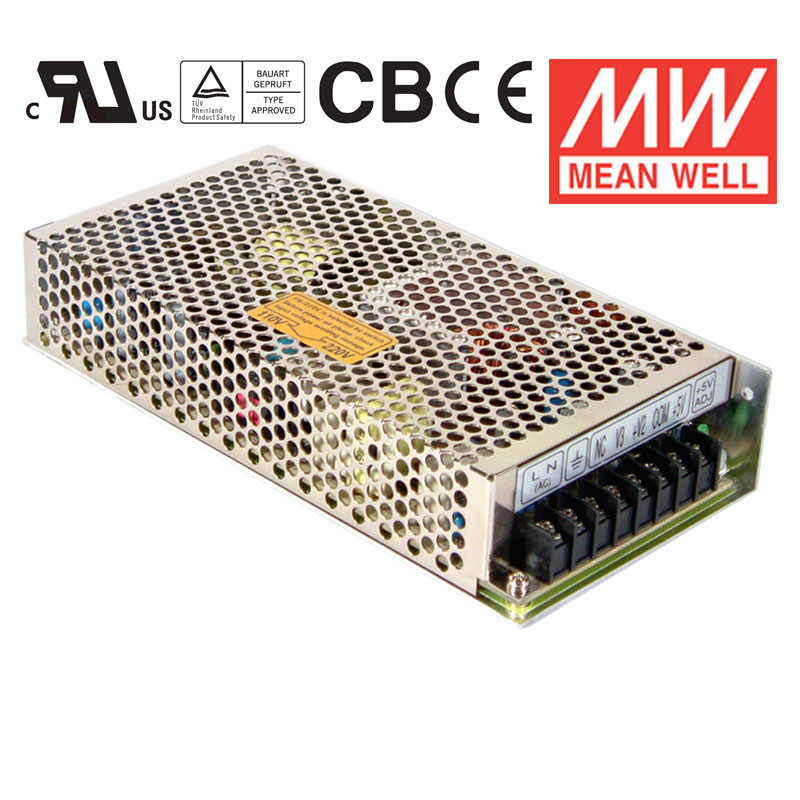

125W Dual Output Switching Power Supply RID-125 series
Features:
* Isolated output & GND for CH1,CH2
* AC input range selectable by switch
* Withstand 300VAC surge input for 5 seconds Protections: Short circuit / Overload / Over voltage All using 105 long life electrolytic capacitors Withstand 5G vibration test
* LED indicator for power on
* 100% full load burn-in test
* High realibility
* 3 years warranty
Specifications:
|
MODEL
|
RID-125-1224
|
RID-125-1248
|
RID-125-2448
|
|
OUTPUT
|
OUTPUT NUMBER
|
CH1
|
CH2
|
CH1
|
CH2
|
CH1
|
CH2
|
|
DC VOLTAGE
|
12V
|
24V
|
12V
|
48V
|
24V
|
48V
|
|
CURRENT RANGE
|
1 ~ 7A
|
0.4 ~ 5A
|
1 ~ 7A
|
0.2 ~ 2.5A
|
0.5 ~ 4A
|
0.2 ~ 2.5A
|
|
RATED CURRENT
|
3.7A
|
3.7A
|
2.3A
|
2.3A
|
2A
|
2A
|
|
RATED POWER
|
133.2W
|
138W
|
144W
|
|
RIPPLE & NOISE (max.)
|
120mVp-p
|
200mVp-p
|
120mVp-p
|
240mVp-p
|
200mVp-p
|
240mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 11.4 ~ 13.2V
|
CH1: 11.4 ~ 13.2V
|
CH1: 22.8 ~ 26.4V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
+8,-5%
|
2.0%
|
+8,-5%
|
1.0%
|
4.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
0.5%
|
1.0%
|
0.5%
|
1.0%
|
|
LOAD REGULATION
|
1.0%
|
5.0%
|
1.0%
|
5.0%
|
1.0%
|
3.0%
|
|
SETUP, RISE TIME
|
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
|
|
HOLD UP TIME
|
36ms/230VAC 30ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(300VAC peak 5sec. No damage)
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY
|
85%
|
85%
|
86%
|
|
AC CURRENT
|
3A/115VAC 2A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
218.2Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
199*98*38mm (L*W*H)
|
|
PACKING
|
0.7Kg; 20pcs/15Kg/0.8CUFT
|
