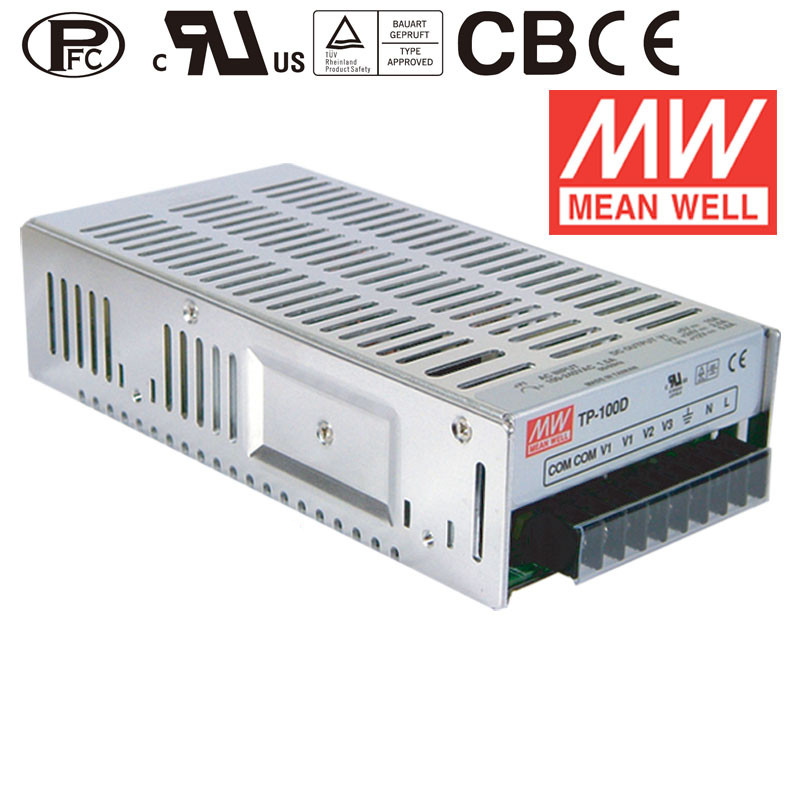

100W Triple Output with PFC Function TP-100 series
Features:
* Universal AC input / Full range
* Built-in active PFC function, PF>0.94
* Protections: Short circuit / Overload / Over voltage
* Free air cooling convection
* Fixed switching frequency at 100KHz
* 3 years warranty
Specifications:
|
MODEL
|
TP-100A
|
TP-100B
|
|
OUTPUT
|
OUTPUT NUMBER
|
CH1
|
CH2
|
CH3
|
CH1
|
CH2
|
CH3
|
|
DC VOLTAGE
|
5V
|
12V
|
-5V
|
5V
|
12V
|
-12V
|
|
CURRENT RANGE
|
3 ~ 15A
|
0.4 ~ 5A
|
0 ~ 1A
|
3 ~ 15A
|
0.4 ~ 5A
|
0 ~ 1A
|
|
RATED CURRENT
|
10A
|
4A
|
0.6A
|
10A
|
4A
|
0.6A
|
|
RATED POWER
|
101W
|
105.2W
|
|
RIPPLE & NOISE (max.)
|
100mVp-p
|
120mVp-p
|
100mVp-p
|
100mVp-p
|
120mVp-p
|
100mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
3.0%
|
7.0%
|
6.0%
|
3.0%
|
6.0%
|
6.0%
|
|
LINE REGULATION
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LOAD REGULATION
|
3.0%
|
6.0%
|
4.0%
|
3.0%
|
6.0%
|
4.0%
|
|
SETUP, RISE TIME
|
800ms, 60ms/230VAC 800ms, 60ms/115VAC at full load
|
|
HOLD UP TIME
|
24ms/230VAC 24ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
90 ~ 264VAC 127 ~ 370VDC
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
POWER FACTOR
|
PF>0.94/230VAC PF>0.98/115VAC at full load
|
|
EFFICIENCY
|
75%
|
78%
|
|
AC CURRENT
|
1.5A/115VAC 0.75A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/230V
|
|
LEAKAGE CURRENT
|
<3.5mA / 240VAC
|
|
OTHERS
|
MTBF
|
170.1K hrs min. MIL-HDBK-217F
|
|
DIMENSION
|
199*99*50mm (L*W*H)
|
|
PACKING
|
0.83Kg; 20pcs/17.6Kg/1.28CUFT
|
|
MODEL
|
TP-100C
|
TP-100D
|
|
OUTPUT
|
OUTPUT NUMBER
|
CH1
|
CH2
|
CH3
|
CH1
|
CH2
|
CH3
|
|
DC VOLTAGE
|
5V
|
15V
|
-15V
|
5V
|
24V
|
12V
|
|
CURRENT RANGE
|
3 ~ 15A
|
0.4 ~ 4A
|
0 ~ 1A
|
3 ~ 15A
|
0.4 ~ 3A
|
0 ~ 1A
|
|
RATED CURRENT
|
10A
|
3A
|
0.6A
|
10A
|
2A
|
0.6A
|
|
RATED POWER
|
104W
|
105.2W
|
|
RIPPLE & NOISE (max.)
|
100mVp-p
|
150mVp-p
|
100mVp-p
|
100mVp-p
|
150mVp-p
|
100mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1: 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
|
3.0%
|
+10,-6%
|
6.0%
|
3.0%
|
8.0%
|
6.0%
|
|
LINE REGULATION
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LOAD REGULATION
|
3.0%
|
6.0%
|
4.0%
|
3.0%
|
6.0%
|
4.0%
|
|
SETUP, RISE TIME
|
800ms, 60ms/230VAC 800ms, 60ms/115VAC at full load
|
|
HOLD UP TIME
|
24ms/230VAC 24ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
90 ~ 264VAC 127 ~ 370VDC
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
POWER FACTOR
|
PF>0.94/230VAC PF>0.98/115VAC at full load
|
|
EFFICIENCY
|
77%
|
78%
|
|
AC CURRENT
|
1.5A/115VAC 0.75A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/230V
|
|
LEAKAGE CURRENT
|
<3.5mA / 240VAC
|
|
OTHERS
|
MTBF
|
170.1K hrs min. MIL-HDBK-217F
|
|
DIMENSION
|
199*99*50mm (L*W*H)
|
|
PACKING
|
0.83Kg; 20pcs/17.6Kg/1.28CUFT
|
