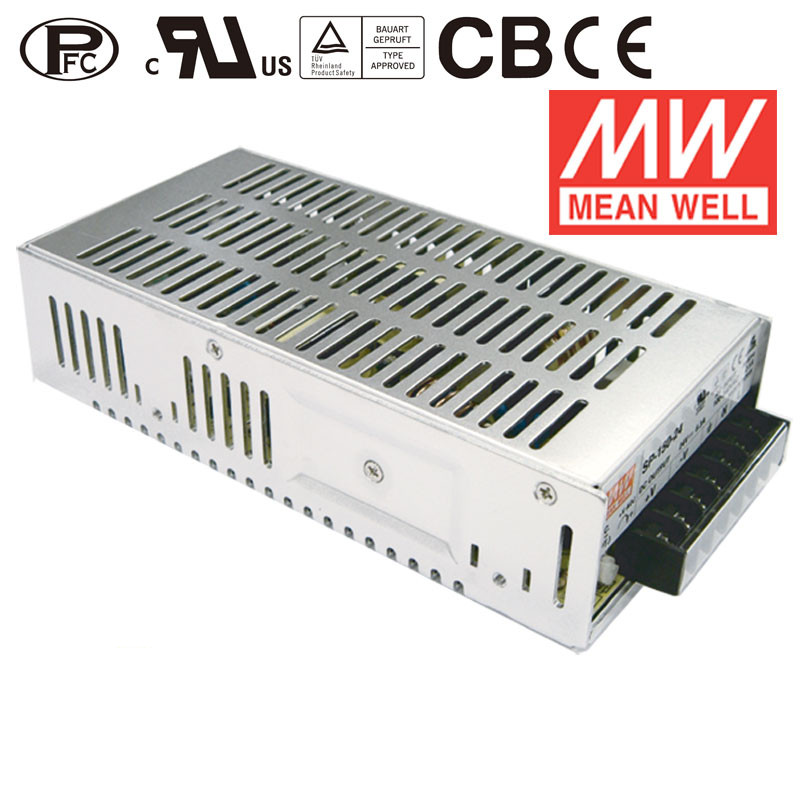

150W Single Output with PFC Function SP-150 series
Features:
* Universal AC input / Full range
* Built-in active PFC function, PF>0.93
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Built-in constant current limiting circuit
* Remote ON-OFF control(Optional)
* LED indicator for power on
* 100% full load burn-in test
* Fixed switching frequency at PFC:67KHz PWM:134KHz
* 3 years warranty
Specifications:
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
7.5V
|
12V
|
|
CURRENT RANGE
|
0 ~ 30A
|
0 ~ 30A
|
0 ~ 20A
|
0 ~ 12.5A
|
|
RATED CURRENT
|
30A
|
30A
|
20A
|
12.5A
|
|
RATED POWER
|
99W
|
150W
|
150W
|
150W
|
|
RIPPLE & NOISE (max.)
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
|
VOLTAGE ADJ. RANGE
|
3.14 ~ 3.63V
|
4.75 ~ 5.5V
|
7.13 ~ 8.25V
|
11.4 ~ 13.2V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
2.0%
|
2.0%
|
2.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
1.0%
|
1.0%
|
1.0%
|
0.5%
|
|
SETUP, RISE TIME
|
600ms, 30ms at full load
|
|
HOLD UP TIME
|
20ms at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
POWER FACTOR
|
PF>0.93/230VAC 0.98/115VAC at full load
|
|
EFFICIENCY
|
67%
|
75%
|
79%
|
80%
|
|
AC CURRENT
|
2.5A/115VAC 1.2A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
191.2K hrs min. MIL-HDBK-217F
|
|
DIMENSION
|
199*99*50mm (L*W*H)
|
|
PACKING
|
0.76Kg; 20pcs/16.4Kg/1.28CUFT
|
|
MODEL
|
SP-150-13.5
|
SP-150-15
|
SP-150-24
|
SP-150-27
|
SP-150-48
|
|
OUTPUT
|
DC VOLTAGE
|
13.5V
|
15V
|
24V
|
27V
|
48V
|
|
CURRENT RANGE
|
0 ~ 11.2A
|
0 ~ 10A
|
0 ~ 6.3A
|
0 ~ 5.6A
|
0 ~ 3.2A
|
|
RATED CURRENT
|
11.2A
|
10A
|
6.3A
|
5.6A
|
3.2A
|
|
RATED POWER
|
151.2W
|
150W
|
150W
|
151.2W
|
153.6W
|
|
RIPPLE & NOISE (max.)
|
100mVp-p
|
100mVp-p
|
150mVp-p
|
150mVp-p
|
250mVp-p
|
|
VOLTAGE ADJ. RANGE
|
12.8 ~ 14.9V
|
14.3 ~ 16.5V
|
22.8 ~ 26.4V
|
25.7 ~ 29.7V
|
45.6 ~ 52.8V
|
|
VOLTAGE TOLERANCE
|
2.0%
|
2.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
�0.5%
|
�0.5%
|
�0.5%
|
�0.5%
|
�0.5%
|
|
SETUP, RISE TIME
|
600ms, 30ms at full load
|
|
HOLD UP TIME
|
20ms at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
POWER FACTOR
|
PF>0.93/230VAC 0.98/115VAC at full load
|
|
EFFICIENCY
|
80%
|
81%
|
83%
|
84%
|
84%
|
|
AC CURRENT
|
2.5A/115VAC 1.2A/230VAC
|
|
INRUSH CURRENT
|
COLD START 40A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
191.2K hrs min. MIL-HDBK-217
|
|
DIMENSION
|
199*99*50mm (L*W*H)
|
|
PACKING
|
0.76Kg; 20pcs/16.4Kg/1.28CUFT
|
