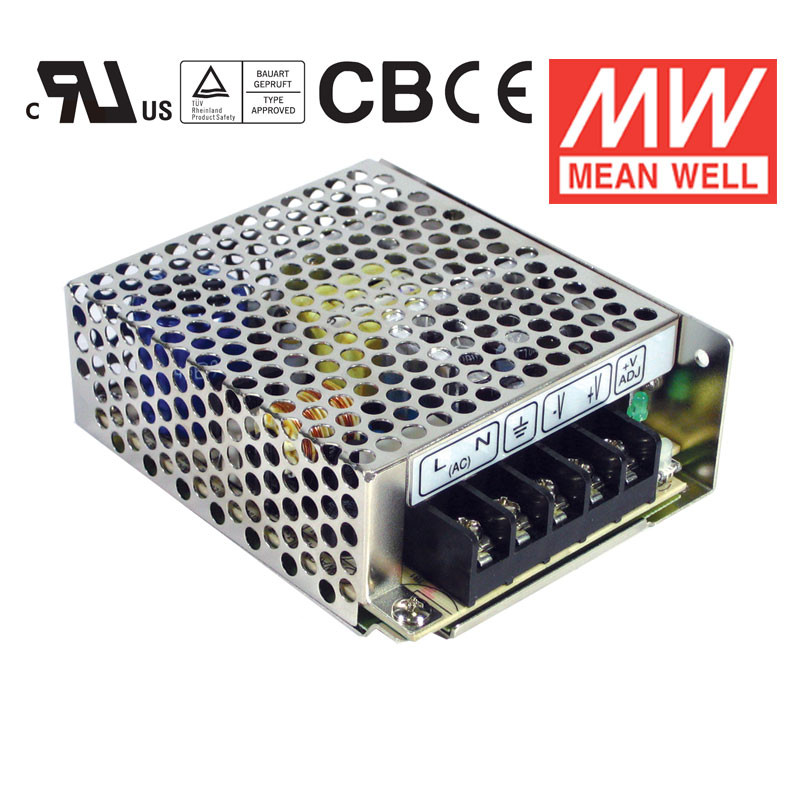

35W Single Output Switching Power Supply RS-35 series
Features:
* Universal AC input / Full range
* Protections: Short circuit / Over load / Over voltage
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* No load power consumption<0.5W
* All using 105oC long life electrolytic capacitors Withstand 300VAC surge input for 5 second High operating temperature up to 7005oC
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* 3 years warranty
Specifications:
|
MODEL
|
RS-35-3.3
|
RS-35-5
|
RS-35-12
|
RS-35-15
|
RS-35-24
|
RS-35-48
|
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
12V
|
15V
|
24V
|
48V
|
|
CURRENT RANGE
|
0 ~ 7A
|
0 ~ 7A
|
0 ~ 3A
|
0 ~ 2.4A
|
0 ~ 1.5A
|
0 ~ 0.8A
|
|
RATED CURRENT
|
7A
|
7A
|
3A
|
2.4A
|
1.5A
|
0.8A
|
|
RATED POWER
|
23.1W
|
35W
|
36W
|
36W
|
36W
|
38.4W
|
|
RIPPLE & NOISE
|
80mVp-p
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
120mVp-p
|
200mVp-p
|
|
VOLTAGE ADJ. RANGE
|
2.9V ~ 3.6V
|
4.5 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5 ~ 16.5V
|
22 ~ 27.6V
|
42 ~ 54V
|
|
VOLTAGE TOLERANCE
|
3.0%
|
2.0%
|
1.0%
|
1.0%
|
1.0%
|
1.0%
|
|
LINE REGULATION
|
0.5%
|
|
LOAD REGULATION
|
2.0%
|
1.0%
|
0.5%
|
0.5%
|
0.5%
|
0.5%
|
|
SETUP RISE TIME
|
500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
|
|
HOLD UP TIME
|
80ms/230VAC 15ms/115VAC at full load
|
|
INPUT
|
VOLTAGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
FREQUENCY
|
47 ~ 63Hz
|
|
EFFICIENCY
|
76.5%
|
80.5%
|
84.5%
|
86%
|
88%
|
88.5%
|
|
AC CURRENT
|
0.8A/115VAC 0.55A/230VAC
|
|
INRUSH CURRENT
|
COLD START 36A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
OTHERS
|
MTBF
|
249Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
99*82*36mm (L*W*H)
|
|
PACKING
|
0.3Kg; 45pcs/14Kg/0.83CUFT
|
