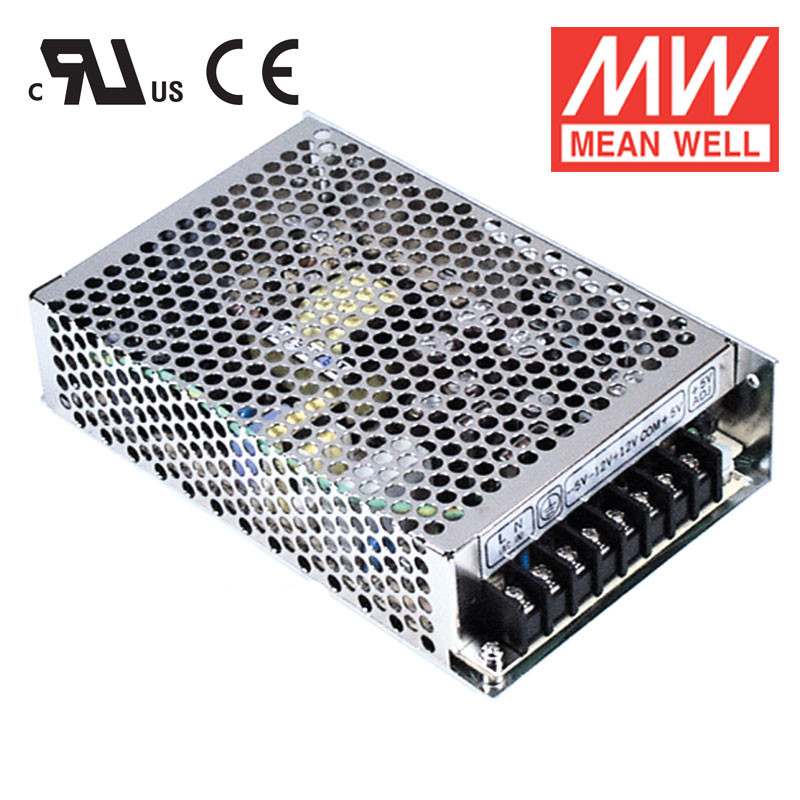

60W Quad Output Switching Power Supply Q-60 series
Features:
* Universal AC input / Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* LED indicator for power on
* Fixed switching frequency at 35KHz
* 2 years warranty
Specifications:
|
MODEL
|
Q-60B
|
|
OUTPUT
|
OUTPUT NUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
12V
|
-5V
|
-12V
|
|
CURRENT RANGE
|
0.5 ~ 8A
|
0.1 ~ 3A
|
0 ~ 1A
|
0 ~ 1A
|
|
RATED CURRENT
|
5.5A
|
2A
|
0.5A
|
0.5A
|
|
RATED POWER
|
60W
|
|
RIPPLE & NOISE (max.) Note.2
|
100mVp-p
|
120mVp-p
|
100mVp-p
|
120mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1 : 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
NOTE.3
|
2.0%
|
6.0%
|
5.0%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
0.5%
|
0.5%
|
|
LOAD REGULATION
|
0.5%
|
4.0%
|
1.0%
|
1.0%
|
|
SETUP, RISE TIME NOTE.5
|
800ms, 20ms/230VAC 1600ms, 20ms/115VAC at full load
|
|
HOLD TIME (Typ.)
|
70ms/230VAC 15ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
70%
|
|
AC CURRENT (Typ.)
|
2A/115VAC 0.8A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 15A/115VAC 30A/230VAC
|
|
LEAKAGE CURRENT
|
<1mA / 240VAC
|
|
OTHERS
|
MTBF
|
284.8K hrs min. MIL-HDBK-217F
|
|
DIMENSION
|
159*97*38mm (L*W*H)
|
|
PACKING
|
0.56Kg; 24pcs/14.4Kg/0.75CUFT
|
|
MODEL
|
Q-60C
|
|
OUTPUT
|
OUTPUT NUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
15V
|
-5V
|
-15V
|
|
CURRENT RANGE
|
0.5 ~ 8A
|
0.1 ~ 3A
|
0 ~ 1A
|
0 ~ 1A
|
|
RATED CURRENT
|
5.5A
|
2A
|
0.5A
|
0.5A
|
|
RATED POWER
|
60W
|
|
RIPPLE & NOISE (max.) Note.2
|
100mVp-p
|
120mVp-p
|
100mVp-p
|
120mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1 : 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
NOTE.3
|
2.0%
|
+8,-4%
|
5.0%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
2.0%
|
0.5%
|
0.5%
|
|
LOAD REGULATION
|
0.5%
|
4.0%
|
1.0%
|
1.0%
|
|
SETUP, RISE TIME NOTE.5
|
800ms, 20ms/230VAC 1600ms, 20ms/115VAC at full load
|
|
HOLD TIME (Typ.)
|
70ms/230VAC 15ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
72%
|
|
AC CURRENT (Typ.)
|
2A/115VAC 0.8A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 15A/115VAC 30A/230VAC
|
|
LEAKAGE CURRENT
|
<1mA / 240VAC
|
|
OTHERS
|
MTBF
|
284.8K hrs min. MIL-HDBK-217F
|
|
DIMENSION
|
159*97*38mm (L*W*H)
|
|
PACKING
|
0.56Kg; 24pcs/14.4Kg/0.75CUFT
|
|
MODEL
|
Q-60D
|
|
OUTPUT
|
OUTPUT NUMBER
|
CH1
|
CH2
|
CH3
|
CH4
|
|
DC VOLTAGE
|
5V
|
12V
|
4V
|
-12V
|
|
CURRENT RANGE
|
0.5 ~ 8A
|
0.1 ~ 3A
|
0 ~ 1A
|
0 ~ 1A
|
|
RATED CURRENT
|
4A
|
1A
|
1A
|
0.5A
|
|
RATED POWER
|
62W
|
|
RIPPLE & NOISE (max.) Note.2
|
100mVp-p
|
120mVp-p
|
150mVp-p
|
120mVp-p
|
|
VOLTAGE ADJ. RANGE
|
CH1 : 4.75 ~ 5.5V
|
|
VOLTAGE TOLERANCE
NOTE.3
|
2.0%
|
6.0
|
+8,-4%
|
5.0%
|
|
LINE REGULATION
|
0.5%
|
1.0%
|
2.0%
|
0.5%
|
|
LOAD REGULATION
|
0.5%
|
4.0%
|
4.0%
|
1.0%
|
|
SETUP, RISE TIME NOTE.5
|
800ms, 20ms/230VAC 1600ms, 20ms/115VAC at full load
|
|
HOLD TIME (Typ.)
|
70ms/230VAC 15ms/115VAC at full load
|
|
INPUT
|
VOLTAGE RANGE
|
85 ~ 264VAC 120 ~ 370VDC
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
EFFICIENCY (Typ.)
|
75%
|
|
AC CURRENT (Typ.)
|
2A/115VAC 0.8A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 15A/115VAC 30A/230VAC
|
|
LEAKAGE CURRENT
|
<1mA / 240VAC
|
|
OTHERS
|
MTBF
|
284.8K hrs min. MIL-HDBK-217F
|
|
DIMENSION
|
159*97*38mm (L*W*H)
|
|
PACKING
|
0.56Kg; 24pcs/14.4Kg/0.75CUFT
|
