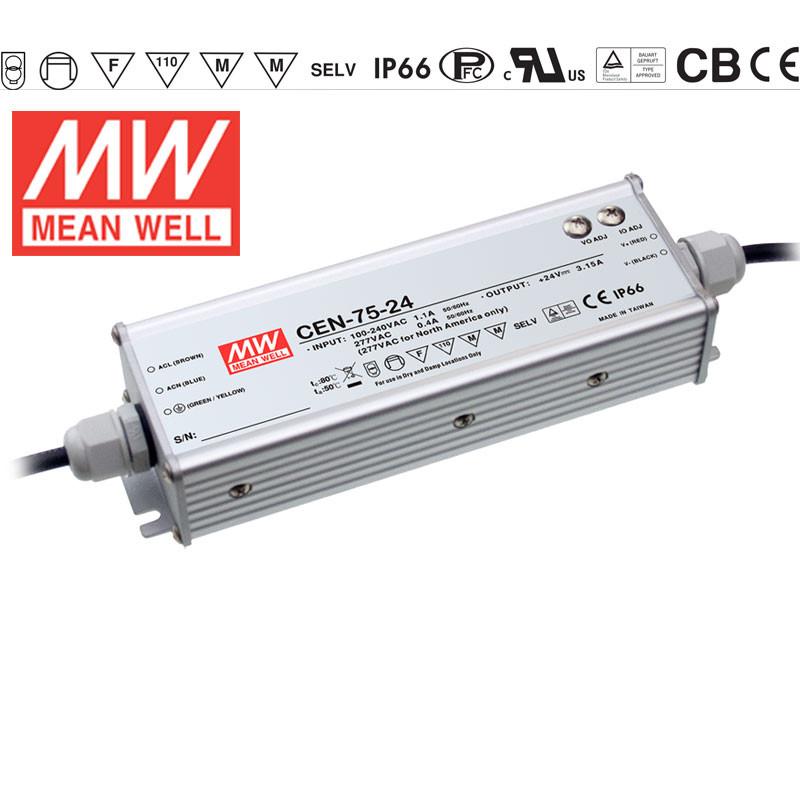

CEN-75

Product:
CEN-75
Model Number:
Description:

Learn more about products detailed description, pricing and service, Please send mail to us!

sales@showlandpower.com

Features:

* Universal AC input / Full range (up to 295VAC)

* Protections: Short circuit / Overload / Over voltage / Over temperature

* Output voltage and constant current level adjustable
* Built-in active PFC function

* IP66 design for indoor .or outdoor installations

* Cooling by free air convection
* 100% full load burn-in test
* High reliability

* Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting Suitable for dry / damp / wet locations
* 3 years warranty

Specifications:

MODEL

CEN-75-
15

CEN-75-20

CEN-75-24

CEN-75-30

CEN-75-36

CEN-75-42

CEN-75-48

CEN-75-
54

OUTPUT

DC VOLTAGE

15V

20V

24V

30V

36V

42V

48V

54V

C&C OPERATION VOLTAGE

11.25 ~ 15V

15 ~ 20V

18 ~ 24V

22.5 ~ 30V

27 ~ 36V

31.5 ~ 42V

36 ~ 48V

40.5 ~
54V

CURRENT RANGE

0 ~ 5A

0 ~ 3.75A

0 ~ 3.15A

0 ~ 2.5A

0 ~ 2.1A

0 ~ 1.8A

0 ~ 1.57A

0 ~ 1.4A

RATED CURRENT

5A

3.75A

3.15A

2.5A

2.1A

1.8A

1.57A

1.4A

RATED POWER

75W

75W

75.6W

75W

75.6W

75.6W

75.36W

75.6W

RIPPLE & NOISE

2.7Vp-p

2Vp-p

2.7Vp-p

3Vp-p

3.6Vp-p

4Vp-p

4.6Vp-p

5Vp-p

VOLTAGE ADJ. RANGE

13.5 ~
17V

17 ~ 22V

22 ~ 27V

27 ~ 33V

33 ~ 40V

37 ~ 46V

43 ~ 53V

49 ~ 58V

VOLTAGE ADJ. RANGE

3.75 ~
5A

2.81~ 3.75A

2.36~ 3.15A

1.88 ~ 2.5A

1.58 ~ 2.1A

1.35 ~ 1.8A

1.18~ 1.57A

1.05 ~ 1.4A

VOLTAGE TOLERANCE

10%

LINE REGULATION

3.0%

LOAD REGULATION

5.0%

SETUP, RISE TIME

1400ms / 230VAC 2800ms / 115VAC at full load

HOLD UP TIME

INPUT

VOLTAGE RANGE

90 ~ 295VAC 127 ~ 417VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR

PF 0.9 at 65 ~ 100% load, 115VAC / 230VAC ; PF>0.97 / 115VAC PF>0.95 / 230VAC at full load

EFFICIENCY

87%

88%

89%

90%

90%

90%

91%

AC CURRENT

1.1A/115VAC 0.55A/230VAC

INRUSH CURRENT

45A/230VAC

LEAKAGE CURRENT

<0.75mA / 240VAC

OTHERS

MTBF

522.2Khrs min. MIL-HDBK-217F (25 )

DIMENSION

183*62.5*40.5mm (L*W*H)

PACKING

0.56Kg;24pcs/14.4Kg/1.11CUFT
