Features: * Constant voltage mode power supply
* Universal AC input / Full range
* Protections: Short circuit / Over current / Over voltage
* Fully isolated plastic case
* Cooling by free air convection
* Small and compact size
* Pass LPS
* 100% full load burn-in test
* Low cost, high reliability
* Suitable for LED lighting and moving sign applications
* 2 years warranty
Specifications:
MODEL

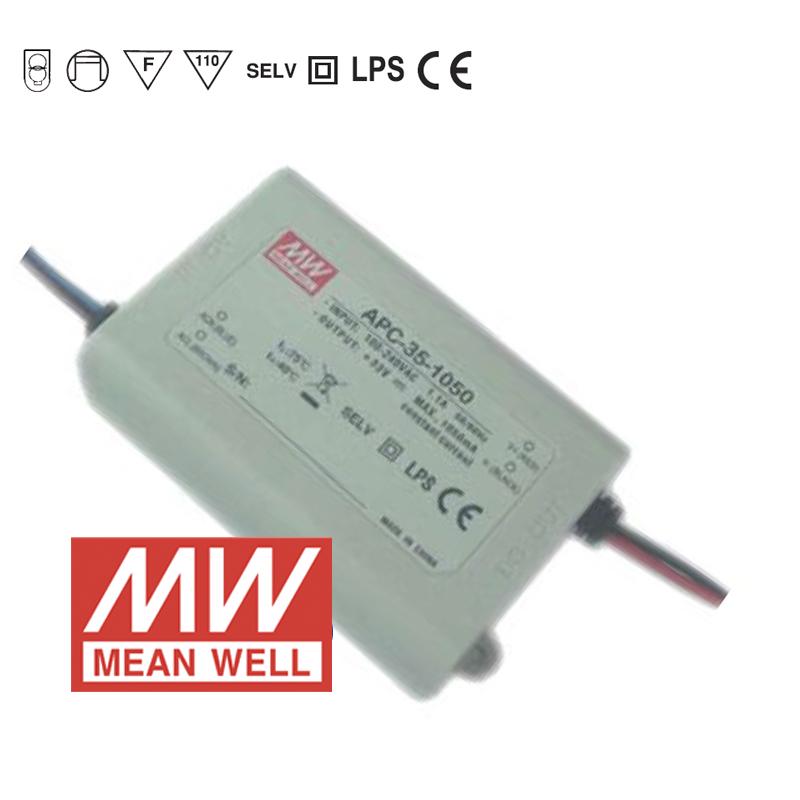

APC-35-350
APC-35-500
APC-35-700
APC-35-1050
OUTPUT
RATED CURRENT
350mA
500mA
700mA
1050mA
DC VOLTAGE RANGE
28-100V
25-70V
15-50V
11-33V
RATED POWER
35W
35W
35W
34.7W
RIPPLE & NOISE(max.) Note.2
300mVp-p
VOLTAGE TOLERANCE Note.3
±5.0%
CURRENT ACCURACY
±8.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±3.0%
SETUP, RISE TIME
1500ms,40ms/230VAC 1500ms, 40ms/115VAC at full load
HOLD UP TIME(Typ.)
20ms/230VAC 12ms/115VAC at full load
INPUT
VOLTAGE RANGE Note.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Type)
84%
84%
84%
84%
AC CURRENT
0.5A/230VAC 0. 8A/115VAC
INRUSH CURRENT (max.)
COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT
0.25mA/240VAC
PROTECTION
OVER VOLTAGE
110 ~ 130V
77-91V
55-65V
36-43V
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
WORKING TEMP.
-30 ~ +70°C (Refer to “Derating curve”)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80°C, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.2%/°C (0 ~ 50)°C
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes
SAFETY & EMC
(Note 5)
SAFETY STANDARDS
Design refer to EN60950-1,UL8750
WITHSTAND VOLTAGE
I/P-O/P: 3.75KVAC
ISOLATION RESISTANCE
I/P-O/P: >100M Ohms / 500VDC / 25°C / 70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 Class A,EN61000-3-3
EMC IMMUNITY
Compliance to EN61547,EN61000-4-2,3,4,5,6,8,11;lightindustry level(surge 2KV),criteria A
