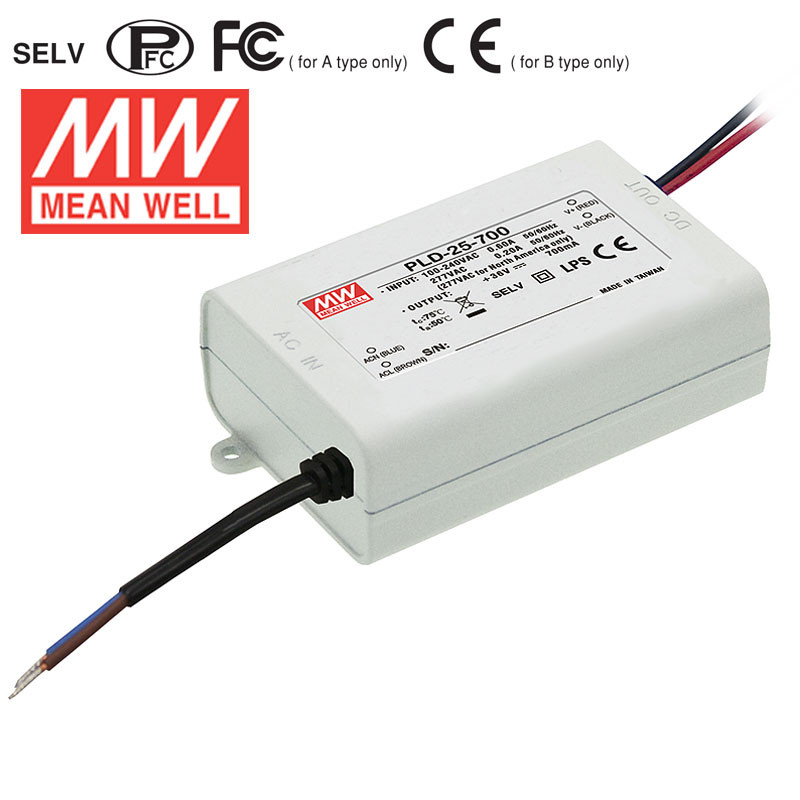

MODEL
|
PLD-25-350
|
PLD-25-700
|
PLD-25-1050
|
PLD-25-1400
|
|
OUTPUT
|
OUTPUT VOLTAGE
|
63V
|
50V
|
35V
|
25V
|
|
C&C OPERATION VOLTAGE
|
40 ~ 58V
|
24 ~ 36V
|
16 ~ 24V
|
12 ~ 18V
|
|
CURRENT RANGE
|
0 ~ 350mA
|
0 ~ 700mA
|
0 ~ 1050mA
|
0 ~ 1400mA
|
|
RATED CURRENT
|
350mA
|
700mA
|
1050mA
|
1400mA
|
|
RATED POWER
|
20.3W
|
25.2W
|
25.2W
|
25.2W
|
|
RIPPLE & NOISE
|
4.6Vp-p
|
2.7Vp-p
|
2.2Vp-p
|
2Vp-p
|
|
SETUP, RISE TIME
|
1000ms / 230VAC 2000ms / 115VAC at full load
|
|
FREQUENCY RANGE
|
47 ~ 63Hz
|
|
POWER FACTOR
|
PF 0.9 at full load and rated output voltage
|
|
EFFICIENCY (Typ.)
|
82%
|
81%
|
80.5%
|
80%
|
|
AC CURRENT (Typ.)
|
0.6A/115VAC 0.3A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
40A/230VAC
|
|
LEAKAGE CURRENT
|
<0.5mA / 240VAC
|
|
PROTECTION
|
OVER CURRENT
|
95 ~ 110%
|
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed
|
|
SHORT CIRCUIT
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
OVER TEMPERATURE
|
95oC 10 (TSW1) detect on heatsink of power transistor
|
|
Protection type : Shut down o/p voltage, re-power on to recover
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30 ~ +60oC (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20 ~ 95% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-40 ~ +85oC , 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
0.03%/oC(0 ~ 50oC )
|
|
VIBRATION
|
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
|
|
SAFETY &EMC(Note 4)
|
SAFETY STANDARDS
|
UL1310 Class 2, TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V) approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3.75KVAC
|
|
|
ISOLATION RESISTANCE
|
I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
|
|
EMI CONDUCTION & RADIATION
|
Compliance to EN55015 Class B
|
|
HARMONIC CURRENT
|
Compliance to EN61000-3-2 Class C ; EN61000-3-3
|
|
EMS
IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024,EN61547, light industry level, criteria A
|
|
OTHERS
|
MTBF
|
Khrs min. MIL-HDBK-217F (25 )
|
|
DIMENSION
|
84*57*29.5mm (L*W*H)
|
|
PACKING
|
0.19Kg; 72pcs/14.7Kg/0.75CUFT
|
